We are an Authorized JBL Dealer - Full Manufacturer Warranty Included - You will receive with purchase:

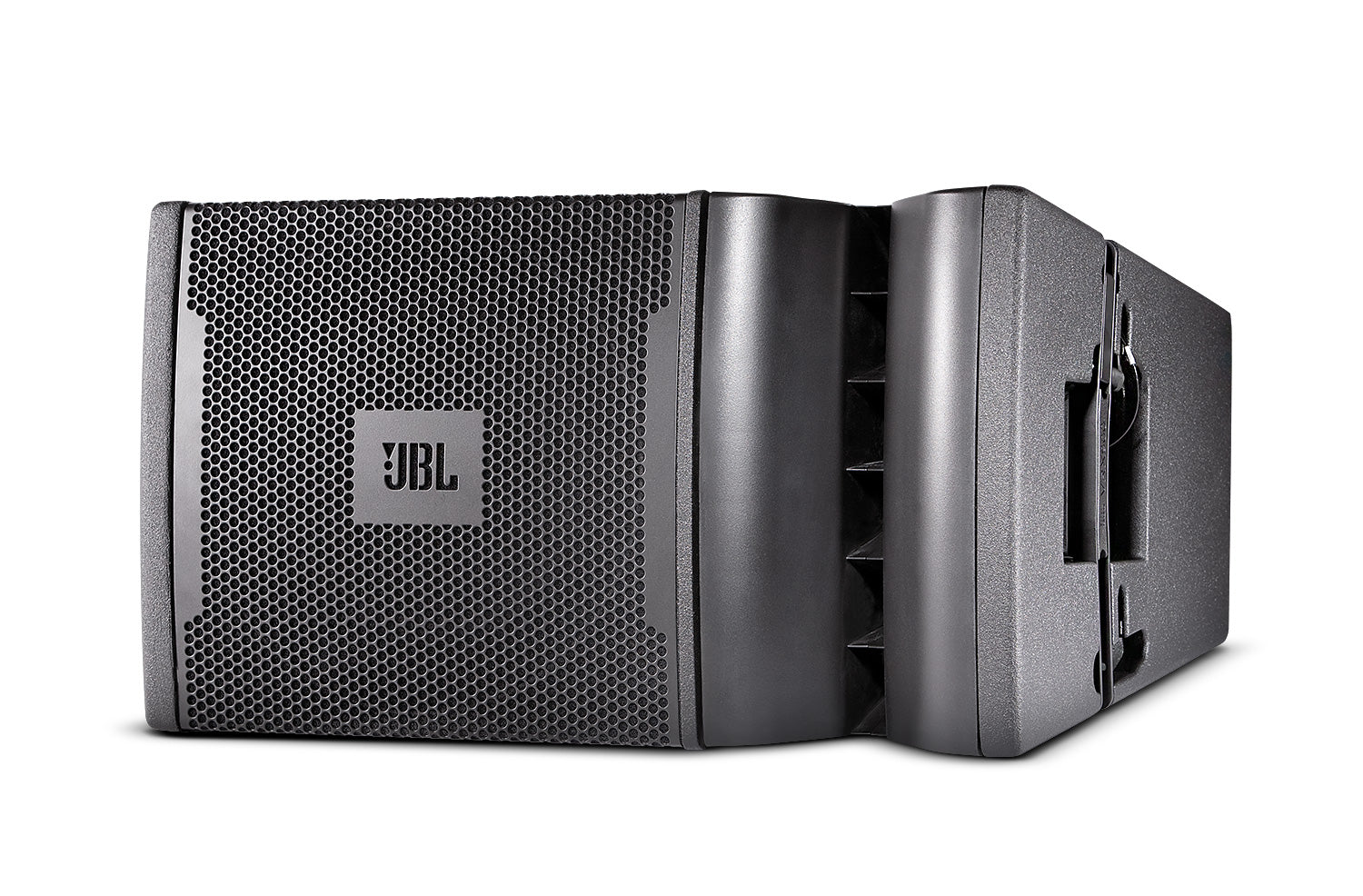

One JBL VRX 900 Series Vertec Two-Way 12" Line Array Loudspeaker System - Model: VRX932LA-1 - If you need more than (1) please change quantity in Checkout!
Shipping:
Free Ship via Flat Rate Freight to Physical Street Address in Continental USA - Allow 1-2 Business Days to ship.
Free Ship to Alaska & Hawaii - Allow 5 to 7 business days for delivery.
12 in. Two-Way Line Array Loudspeaker System
The VRX932LA-1 is a light-weight (46 lb / 21 kg) compact 12" two-way line array speaker system designed for use in arrays of up to six units.
FEATURES
- JBL's exclusive neodymium magnet Differential Drive woofer for high-power capacity and light-weight.
- VRX932LA-1 features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
- Constant Curvature waveguide for unprecedented array coherence.
- Dual angle pole socket for aiming flexibility. One or two speakers may be mounted to a 35 mm pole or tripod stand.
- Integral rigging hardware for simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.
- Array Configuration Selector permits array shading in passive mode.
SPECIFICATIONS
Power Rating 800 W / 1600 W / 3200 W
Frequency Range 57 Hz - 20 kHz (-10 dB)
Dimensions (H x W x D) 343 mm x 597 mm x 376 mm (13.5 in x 23.5 in x 14.8 in)
Frequency Response 75 Hz - 20 Hz (+/-3db)
Coverage Pattern 100 x 15 nominal
Crossover Modes Bi-amp / passive, externally switchable
Crossover Frequency 132 dB SPL peak 1.2 kHz
System Maximum SPL Passive: 130 dB SPL peak , Bi-amp LF: 130 dB SPL peak
System Sensitivity (1w @ 1m
Passive: 95 dB SPL
Bi-amp LF: 95 dB SPL
Bi-amp HF: 114 dB SPL
LF Driver 1 x JBL 2262H 305 mm (12 in) Differential Drive woofer with
neodymium magnet, dual voice-coils, and dual magnetic gaps.
HF Driver 3 x JBL 2408J, 38 mm (1.5 in) voice-coil, neodymium
compression driver
Nominal Impedance
Passive: 8 ohm
Bi-amp LF: 8 ohm
Bi-amp HF: 8 ohm
Active Tunings Tunings available at
Enclosure 18 mm, 11-ply birch plywood
Suspension / Mounting Optional VRX932LA-AF line array frame kit
Finish Black DuraFlex finish
Grille: Power coated, black, 16-guage perforated steel with with acoustically transparent foam
Input Connectors Neutrik Speakon NL-4 (x2)
Net Weight 21 kg (46 lb)
