We are an Authorized JBL Dealer - Full Manufacturer Warranty Included - You will receive:
One (1) NEW and Factory Sealed JBL Commercial Series Mixer CSM14
If you need more than (1) please change quantity in Checkout!
Shipping Options:
Free Ship via UPS or Fedex Ground to Physical Street Address in Continental USA – Allow 1-2 Business Day to ship.
Free Ship to Alaska & Hawaii - Allow 5 to 7 business days for delivery.
Overview:
Backed by the combined technological prowess of multiple HARMAN brands, the JBL Commercial Series Mixers (CSM) deliver unsurpassed quality in commercial sound.
Easily configured for a range of applications, such as background music, security, and paging, CSM units are designed for everything from schools and hospitals to restaurants and fitness facilities.
They feature RJ45 connectors for use with JBLCSR-V in-wall volume controls, and a universal power supply that accepts AC voltages from 100 to 240 VAC, 50/60 Hz. Plus, they're built using HARMAN's GreenEdge clean standards to offer numerous energy-efficient benefits, including a lighter weight, space-saving design, and conforming to RoHS standards.
Features:
4 or 8 inputs with 1 or 2 channel outputs
Fanless, space-saving 1U design
Configurable output routing (2 channel models only)
Independent base/treble controls

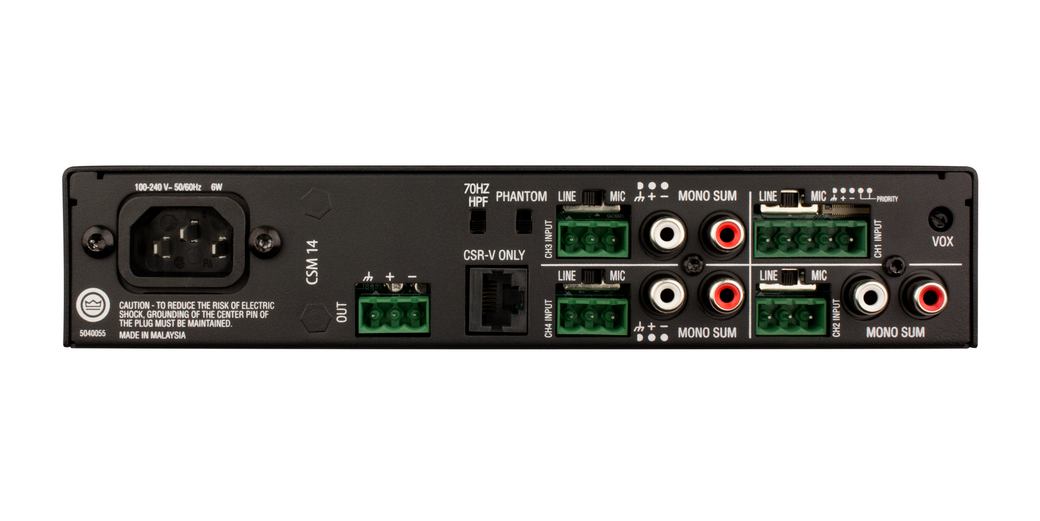

Euro-block type mic/line input and output connectors, and unbalanced RCA inputs for consumer connection
Supports JBL CSR-V wall controller via Ethernet cable
Priority muting, VOX ducking, and phantom power for all models
Specifications:
Inputs 4
Output Channels 1
Input Sensitivity (Mic) 3mVrms
Input Sensitivity (Line) 775mVrms
Input Sensitivity (RCA) 300mVrms
Phantom Power 27VDC
Priority Muting Yes
Configurable Output Routing No
AC Line Voltage 100 - 240V, 50/60 Hz
Dimensions 1.7" x 8.6" x 11.9" (43.3mm x 218.5 mm x 303.4mm)
