We are an Authorized JBL Dealer - Full Manufacturer Warranty Included - You will receive:
One (1) NEW & Factory Sealed JBL AWC159 All-Weather Compact 2-Way Coaxial Loudspeaker Color: Black - If you need 2 speakers or more, please change the quantity in checkout!
Shipping Options:
Free Ship via Flat Rate Freight to Physical Street Address in Continental USA - Allow 1-2 Business Days to ship.
Free Ship to Alaska & Hawaii - Allow 5 to 7 business days for delivery.

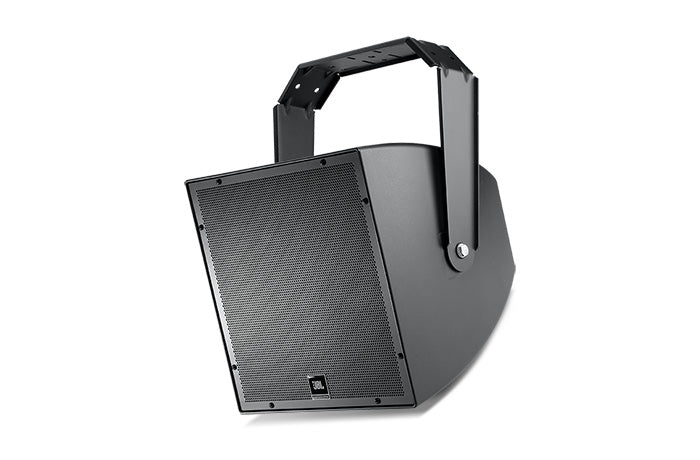

JBL AWC159 All-Weather Compact 2-Way Coaxial Loudspeaker w/15" LF
The AWC159 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

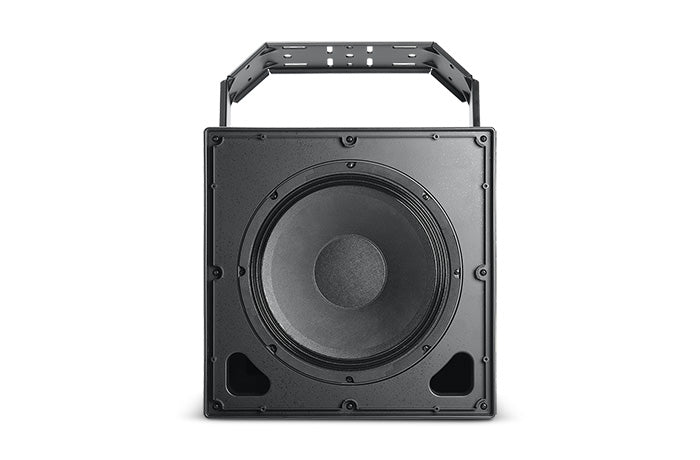

The AWC159 is comprised of a high-power coaxial 380 mm (15 in) low frequency driver and 38 mm (1.5 in) high frequency compression driver. The co-axial design utilizes a unique tapered polepiece design and transitions to the cone of the low frequency driver as a large diameter pattern control horn for the high frequencies, both eliminating high-frequency beaming which is common among this category of speaker and extending pattern control to the lowest possible frequencies. The result is a coaxial speaker with wide, extremely consistent 90° coverage on a broadband basis.
Component features include a Kevlar-reinforced low frequency cone for reliability, well-damped surround for smooth frequency response, high temperature 75 mm (3 in) voice coil and a reduced distortion design through saturated-gap magnet geometry. The high frequency compression driver features a unique patented design, high temperature polymer diaphragm, and fluid-cooling for high output levels with low distortion.
The paintable enclosure is constructed of thick ABS plus fiberglass and is heavily braced to maximize low-frequency performance. The corrosion-resistant zinc-rich extra-thick powder coated steel grille is backed with open cell foam and high thread-count mesh, providing excellent protection in the harshest environments. The system is rated IP-56, per IEC529 when installed at minimum 5° down-tilt.
The system is equipped with a 300W 70V/100V multi-tap transformer. Connection is made via outdoor-rated terminals in a recessed terminal cup. A protective terminal compartment cover is included, along with gland nut, which forms a water-tight seal with round-jacketed cable having The high frequency compression driver features a unique patented design, high temperature polymer diaphragm, and fluid-cooling for high output levels with low distortion.

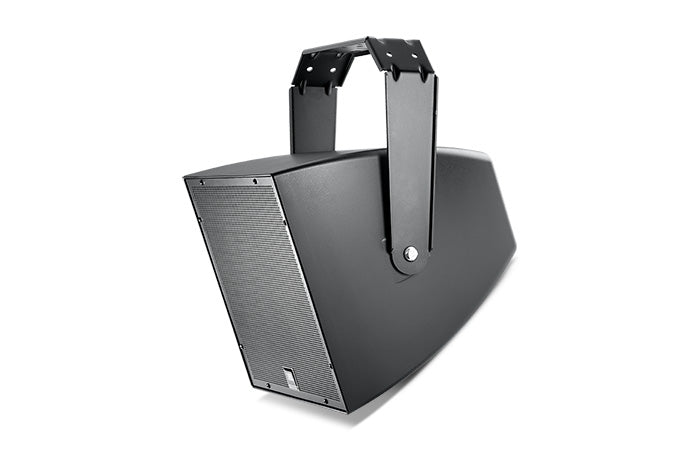

A heavy-duty weather-capable zinc-rich, thick powder coated U-type mounting bracket is included.
Features:
Highly weather-resistant IP56 rating.
Consistent 90° x 90° broadband pattern control.
Components:
• 380 mm (15 in) woofer with Kevlar-reinforced cone and 75 mm (3 in) voice coil.
• 38 mm (1.5 in) exit compression driver with unique patented design and high temperature polymer diaphragm.
Extraordinary clarity for speech, with extended Frequency response for music.
Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
500 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
High-power passive crossover network.
Overload protection.
52 Hz – 20 kHz frequency response.
300 Watt 70V/100V multi-tap (built-in transformer) or direct 8Ω low-impedance.
Specifications:
System:
Frequency Range (-10 dB): 52 Hz – 20 kHz
Frequency Response (±3 dB): 80 Hz – 20 kHz
Coverage Pattern: 90º x 90º
Directivity Factor: 11.1 (1 k – 16 kHz)
Directivity Index (DI): 9.7 dB (1 k – 16 kHz)
Long-Term System Power Rating (IEC): 500 W (2000 W peak), 2 hrs.300 W (1200 W peak), 100 hrs
Sensitivity (2.83V @ 1m): 98 dB (Ave. 80 Hz – 20 kHz)
Maximum SPL4: Direct 8Ω: 125 dB (peaks of 131 dB)
300 W Tap: 123 dB (peaks of 129 dB)
Crossover Network: 1.5 kHz, 4th order (24 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
Nominal Impedance: 8 ohms
Transformer Taps: 70V: 300W, 150W, 75W, 38W
100V: 300W, 150W, 75W
Transducers:
Low Frequency Driver: Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil.
High Frequency Driver: 2408H-2 38 mm (1 in) diaphragm and voice coil diameter, patented high-temperature annular polymer diaphragm, copper-clad aluminum coil, fluid-cooled.
Physical:
Enclosure: ABS with Glass enclosure, heavily braced
Attachment: Two M10 (fine-thread) points for included U-bracket. Reference torque 15 ft.lb (20 N.m). M6 secondary safety attachment point on back panel.
Grille: Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3-layer assembly with foam and woven poly mesh backing.
Input Connection: CE-compliant covered barrier strip terminals. Barrier terminals accept up to 8 mm outside 4 mm inside open-lug (#6 or #8) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with roundjacketed cables with outside diameters between 4.0 mm (0.16”) and 9.0 mm (0.36”).
Environmental: IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for acid-air/salt-spray (336 hrs).
Dimensions: 486 x 486 x 479 mm (19.1 x 19.1 x 18.8 in), cabinet 507 mm (19.9 in) depth including gland nut 546 mm (21.5 in) including bracket extending to back
Colors: Available in gray (similar to Pantone 420C) and black (-BK)
Net Weight: 20.6 kg (45.5 lb), 23.4 kg (51.5 lb) with U-bracket
Shipping Weight: 27.7 kg (61.0 lb)
Included Accessories: U-bracket, matches loudspeaker color (gray or black), zinc-rich extra thick powder coated, steel.
