We are an Authorized JBL Dealer - Full Manufacturer Warranty Included - You will receive:
One (1) New & Factory Sealed JBL VLA-C2100 Two-Way Full Range Loudspeaker w/2 x 10" Differential Drive (Color: Gray) - If you need 2 speakers or more, please change the quantity in checkout!
Shipping Options:
Free Ship via Flat Rate Freight to Physical Street Address in Continental USA - Allow 1-2 Business Days to ship.
Free Ship to Alaska & Hawaii - Allow 5 to 7 business days for delivery.
Overview:
Two-Way Full Range Loudspeaker with 2 x 10" Differential Drive® LF

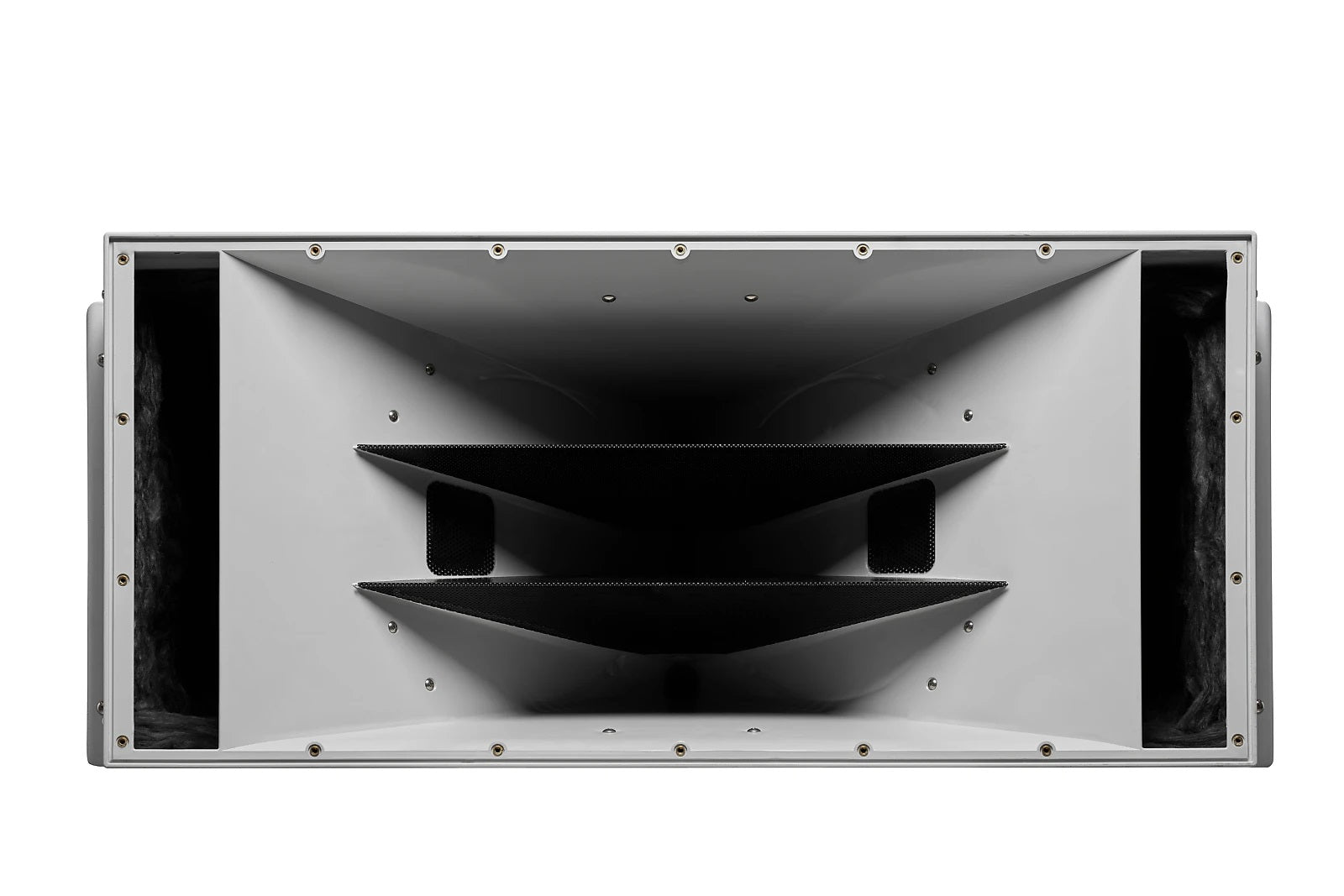

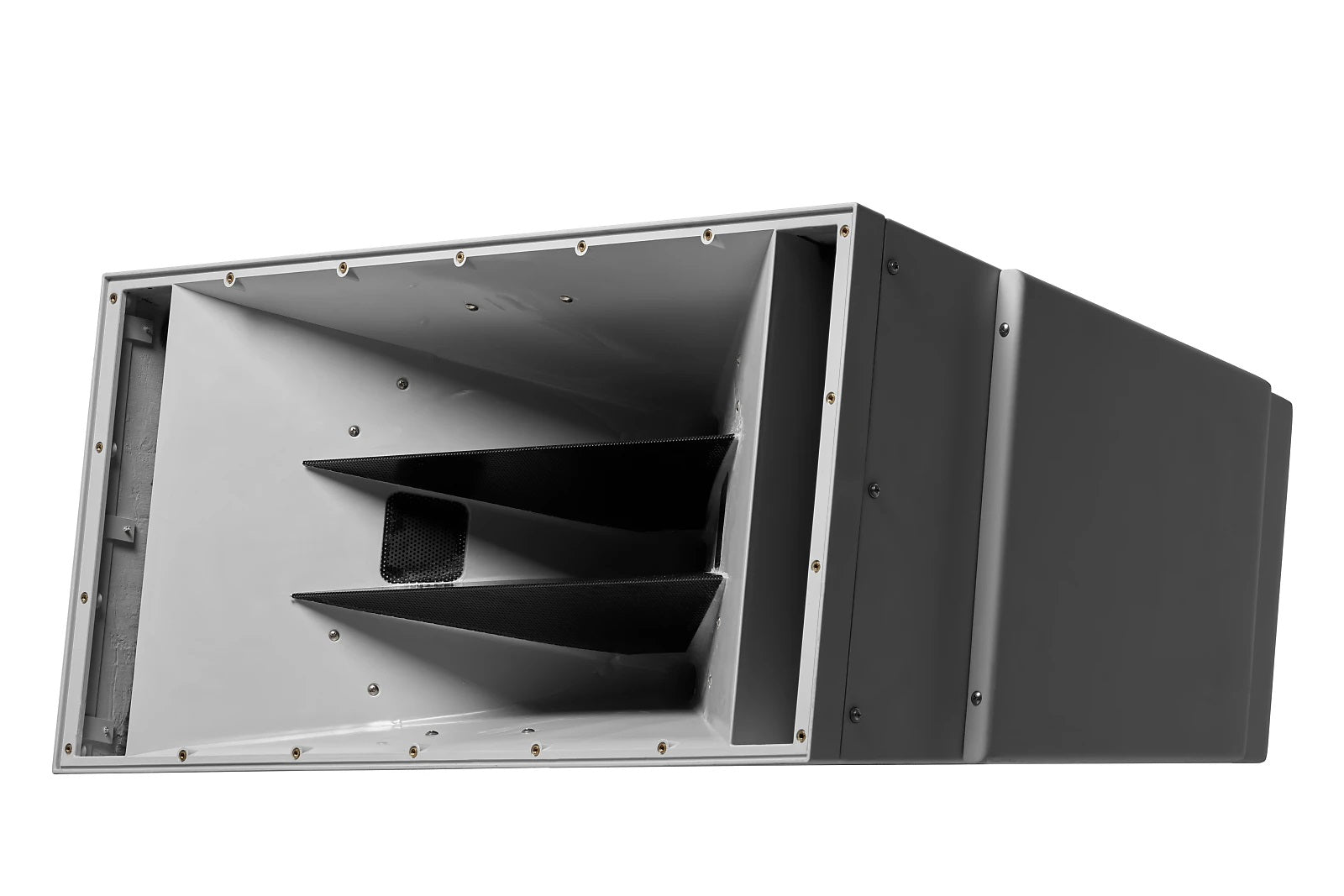

The VLA-C2100 uses JBL proven technology components. The high frequency section is horn-loaded for maximum sensitivity and optimum pattern control and features three D2415 drivers featuring 1.5” diameter annular diaphragms, 1.5” voice coils, and neodymium motors.
The low-frequency section utilizes dual 2261 10” Differential Drive® 3” voice coil drivers.
Enclosures feature multi-layer reinforced fiberglass and steel end-panels. Grilles are zinc plated, powder coated 14-gauge perforated steel with an acoustically transparent black grill cloth backing, a hydrophobic mesh underlayer, and a waterproof rail system.
The rigging system is inherent to the design of the system. Inter-box angles are selected when the array is assembled. Other accessories include a rigging frame, pull-back bar, and a cardioid kit for the sub.
Features:
Compact line array module optimized for permanent install applications
Advanced technology component transducers for low weight and high output
Outdoor IP55 rated enclosure for protection from dust and water
Comprehensive rigging points for creating a line array configuration
Fiberglass box construction and weatherized components
Can be bi-amplified for maximum SPL, or fed passively for reduced amplification costs
100° horizontal coverage pattern
System Specifications:
Frequency Range (-10 dB) 86 Hz - 18 kHz
Frequency Response (±3 dB) 109 Hz – 15.3 kHz
System Power Rating
Full Range 800 W Continuous Pink Noise (3200 W peak), 2 hrs
400 W Continuous Pink Noise (1600W peak), 100 hrs
Bi-amp LF 800 W Continuous Pink Noise (3200 W peak), 2 hrs
400 W Continuous Pink Noise (1600W peak), 100 hrs
Bi-amp HF 150 W Continuous Pink Noise (600 W peak), 2 hrs
50 W Continuous Pink Noise (200 W peak), 100 hrs
Maximum Input Voltage
Full-Range 80 V Rms (2 hrs), 160 V peak
Bi-Amp LF 80 V Rms (2 hrs), 160 V peak
Bi-Amp HF 50 V Rms (2 hrs), 135 V peak
Maximum SPL (1m) 131 dB Cont. Ave (2 hrs), 137 dB Peak
Sensitivity
Full-Range 102 dB (85 Hz – 19 kHz)
Bi-Amp LF 100 dB (85 Hz – 950 Hz
Bi-Amp HF 107 dB (950 Hz – 19.2 kHz)
Coverage Pattern (-6 dB) Horizontal: 100° (+5°/-15°, 1.5 kHz to 15 kHz)
Vertical: Varies with array size and configuration
Impedance
Full-Range 8Ω, 6.7Ω min @ 200 Hz
Bi-Amp LF 8Ω, 6.9 Ω min @ 230 Hz
Bi-Amp HF 16 Ω, 15.9 Ω min @ 1.1 kHz
Amplifiers Crown DCi Family with DSP on-board
Recommended Amps to use with this product:
Crown DCi 2 | 1250N
Crown DCi 4 | 1250N/ND/DA
Crown DCi 2 | 2400N
Crown DCi 4 | 2400N
Transducers
Low Frequency Driver 2 x 2261FF, 254 mm (10 in) diameter, each with two 76 mm (3 in) diameter voice coils, Neodymium Differential Drive®, Direct Cooled™
High Frequency Driver 3 x 2415K, D2 Dual Diaphragm Dual Voice Coil Compression Drivers, each with two 38 mm (1.5 in) dia. Voice Coils; 21 mm (0.8 in) exit
Physical
Enclosure Material Fiberglass shell, gelcoat finish, with 18 mm Birch plywood internal bracing.
Grille Powder coated 14 gauge hex-perforated steel with zinc under-coating, backed with acoustically transparent cloth and hydrophobic screen.
Inter-Enclosure Angles VLA-C2100 to VLA-C2100: 2.4°, 3.8°, 6.0°, 9.5°, 15° using VLA-C2100 Bracket Plate (included with VLA-C2100)
VLA-C2100 to VLA-C265 (either model on top/bottom): 1.9°, 3.0° using VLA-C2100 Bracket Plate (included with VLA-C2100) and 4.7°, 7.5°, 11.9° using VLA-C265 Bracket Plate (included with VLA-C265)
VLA-C2100 below VLA-C125S Subwoofer (VLA-C2100 cannot be connected above C125S): 0°, 7.5° using VLA-C125S Bracket Plate (included with VLA-C125S)
Environmental IP-55 rating per IEC529 (dust protected and protected against jets of water)
Terminals CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9mm (0.375 in) spade lugs. Touch-proof covers
Colors -GR: Gray (similar to Pantone 428C), -BK: Black
Dimensions (H x W x D) 381 x 848 x 460 mm (15.0 x 33.4 x 18.1 in)
Net Weight (ea) 37.7 kg (83 lbs)
Shipping Weight (ea) 44.0 kg (97 lbs)
Included Accessories 2 x VLA-C2100 Bracket Plates
8 pcs. M10 x 35 mm stainless steel bolts (1.5mm pitch, 6 mm hexdrive) for attaching Bracket Plates
2 pcs. Plastic Trim Cover Panels for Bracket Plates, each attaches via
4 pcs (8 total) 3-32 x ½” trusshead, phillips-drive, stainless steel bolts
Optional Accessories
VLA-C-SB Suspension Bar Kit for the array, includes 2 identical Suspension Bars (for top/bottom), 4 pcs ¾-inch Class 2 Screw Pin Shackles (must use 2 Shackles for each Suspension Bar, located at end channels, not in the center).
