We are an Authorized JBL Dealer - Full Manufacturer Warranty Included - You will receive:
One (1) NEW & Factory Sealed JBL VLA-C125S Dual 15" Subwoofer with Differential Drive - If you need 2 speakers or more, please change the quantity in checkout!
Shipping Options:
Free Ship via Flat Rate Freight to Physical Street Address in Continental USA - Allow 1-2 Business Days to ship.
Free Ship to Alaska & Hawaii - Allow 5 to 7 business days for delivery.
Overview:

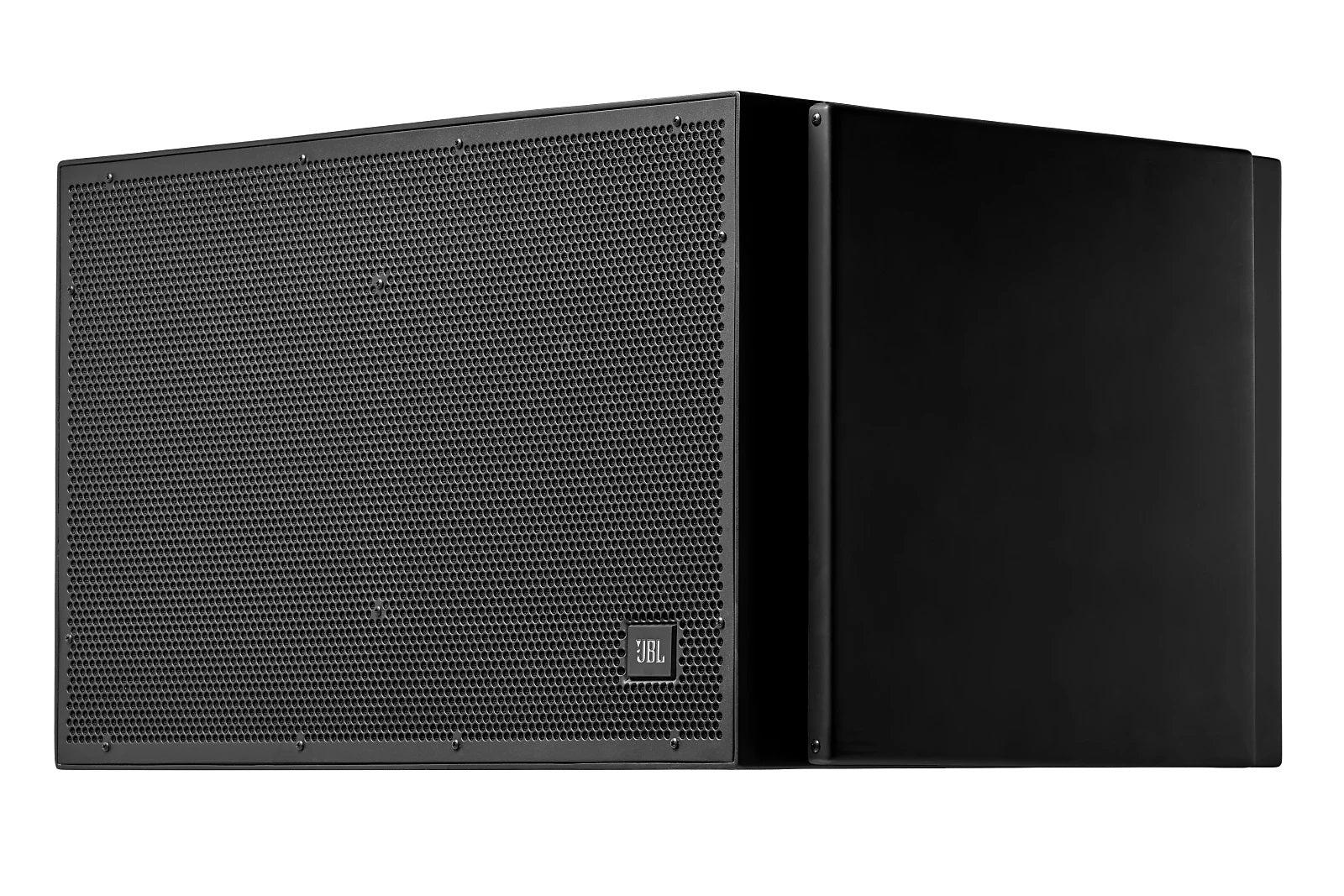

The VLA-C125S uses JBL proven technology components, featuring dual 15†Differential Drive transducers.

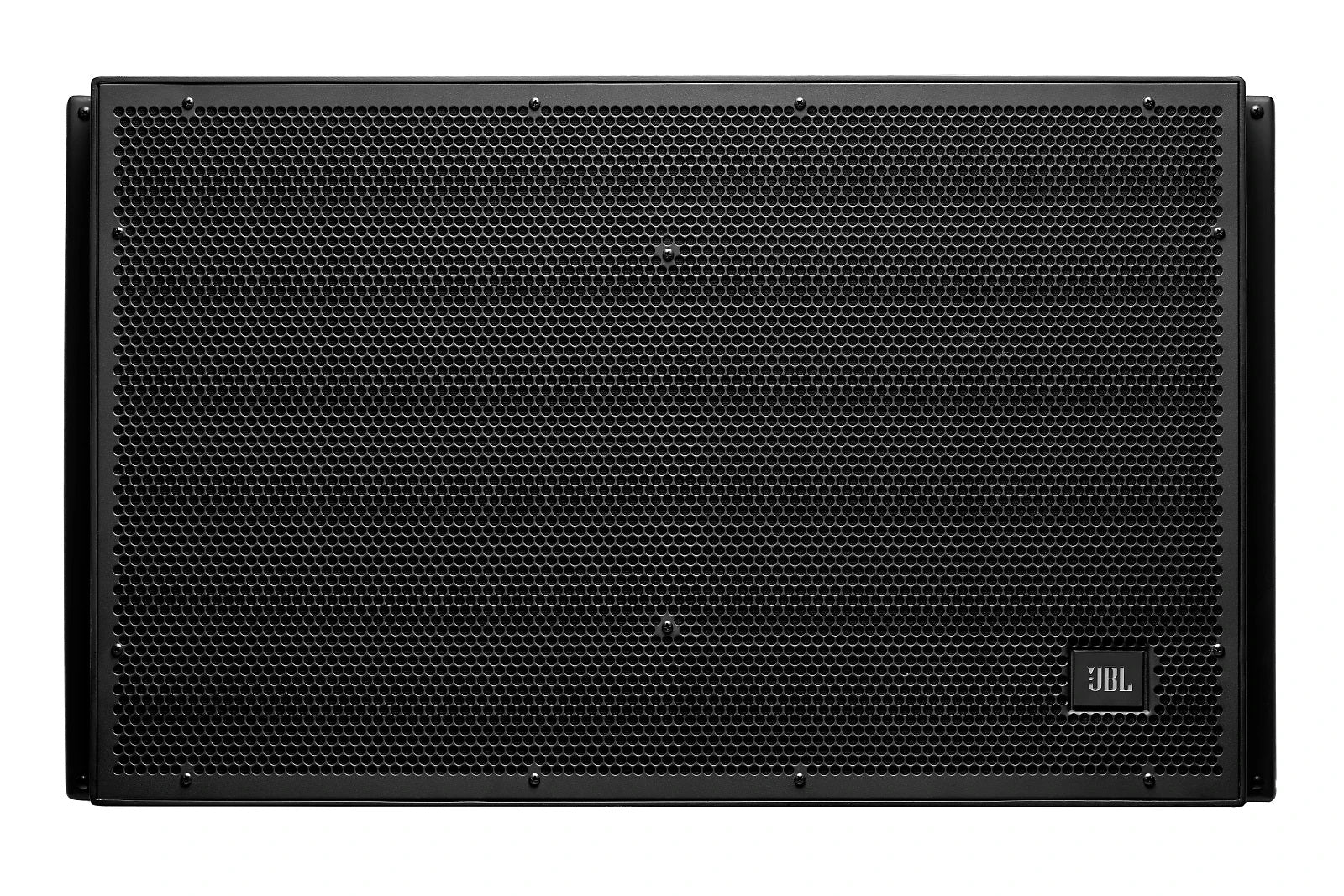

Enclosures feature multi-layer reinforced fiberglass and steel end-panels. Grilles are zinc plated, powder coated 14-gauge perforated steel with an acoustically transparent black grill cloth backing, a hydrophobic mesh underlayer, and a waterproof rail system.
The rigging system is inherent to the design of the system. Inter-box angles are selected when the array is assembled. Other accessories include a rigging frame, pull-back bar, and a cardioid kit.
Features:
Compact line array module optimized for permanent install applications
Advanced technology component transducers for low weight and high output
Outdoor IP55 rated enclosure for protection from dust and water
Comprehensive rigging points for creating a line array configuration
Fiberglass box construction and weatherized components
Dual 15" transducers
Specifications:
Frequency Range (-10 dB) 52 Hz - 210 Hz
Frequency Response (±3 dB) 62 Hz - 123 Hz
System Power Rating 1600 W Continuous Pink Noise (6400 W peak), 2 hrs
800 W Continuous Pink Noise (3200W peak), 100 hrs
Maximum Input Voltage 80 V Rms (2 hrs), 160 V peak
Maximum SPL (1m) 127 dB Cont. Ave (2 hrs), 133 dB Peak
Sensitivity 98 dB (52 Hz - 210 Hz, 2.83V)
Impedance 4 Ohm, 3.0 Ohm min @ 195 Hz
Amplifiers Crown DCi Family with DSP on-board
Recommended Crown DCi 2 | 2400N
Crown DCi 4 | 2400N

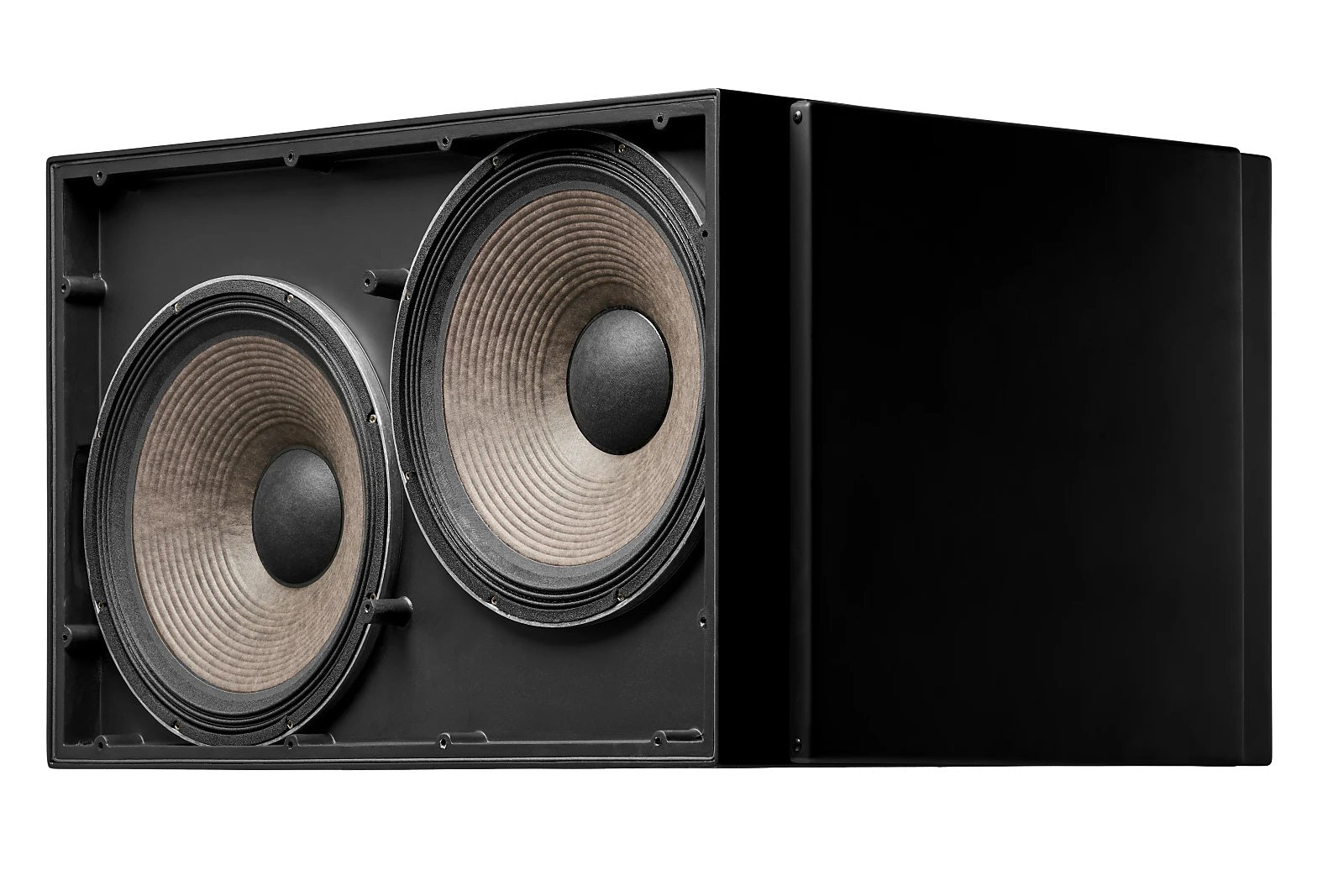

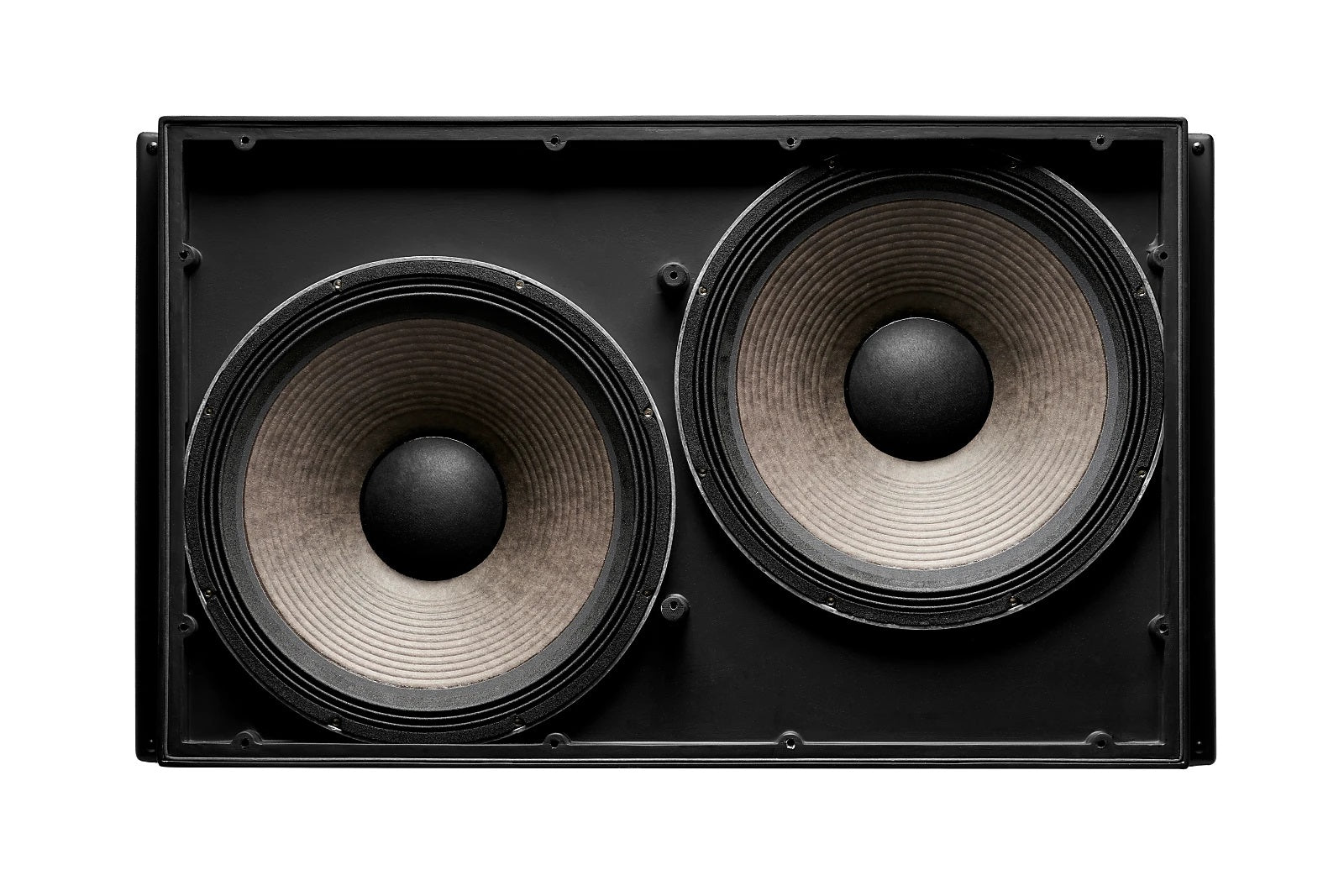

Low Frequency Driver 2 x 2275H, 304 mm (15 in) diameter , each with two 76 mm (3 in) diameter voice coils, Neodymium Differential Drive, Direct Cooled
Enclosure Material Fiberglass shell, gelcoat finish, with 18 mm Birch plywood internal bracing.
Grille Powder coated 14 gauge hex-perforated steel with zinc under-coating, backed with acoustically transparent cloth and hydrophobic screen.
Inter-Enclosure Angles VLA-C125S to VLA-C125S: 0° using VLA-C125S Bracket Plate (included with VLA-C125S)
VLA-C265 below VLA-C125S Subwoofer (VLA-C265 cannot be connected above C125S): 0°, 5° using VLA-C125S Bracket Plate (included with VLA-C125S)
VLA-C2100 below VLA-C125S Subwoofer (VLA-C2100 cannot be connected above C125S): 0°, 7.5° using VLA-C125S Bracket Plate (included with VLA-C125S)
Environmental IP-55 rating per IEC529 (dust protected and protected against jets of water).
Terminals CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9mm (0.375 in) spade lugs. Touch-proof covers. Full set of terminals on back panel, plus optional-use inter-cabinet connection terminals located on top and bottom panels of cabinet.
Dimensions (H x W x D) 508 x 848 x 634 mm (20.0 x 33.4 x 24.9 in)
Net Weight (ea) 56.7 kg (125 lbs)
Shipping Weight (ea) 62.6 kg (138 lbs)
Included Accessories 2 x VLA-C125S Bracket Plates
8 pcs. M10 x 35 mm stainless steel bolts (1.5mm pitch, 6 mm hex-drive) for attaching Bracket Plates
2 pcs. Plastic Trim Cover Panels for Bracket Plates, each attaches via
4 pcs (8 total) 3-32 x ½" trusshead, phillips-drive, stainless steel bolts.
Optional Accessories VLA-C-SB Suspension Bar Kit -- For top & bottom of the array, includes 2 identical Suspension Bars (for top/bottom), 4 pcs ¾-inch Class 2 Screw Pin Shackles (must use 2 Shackles for each Suspension Bar, located at end channels, not in the center).
VLA-C125S-ACC kit - For adding terminal cup to front to allow easy and neat cardioid subwoofer wiring.
VLA-C-ACC kit - For adding front baffle terminals for cardioid subwoofer configuration.
