Overview:

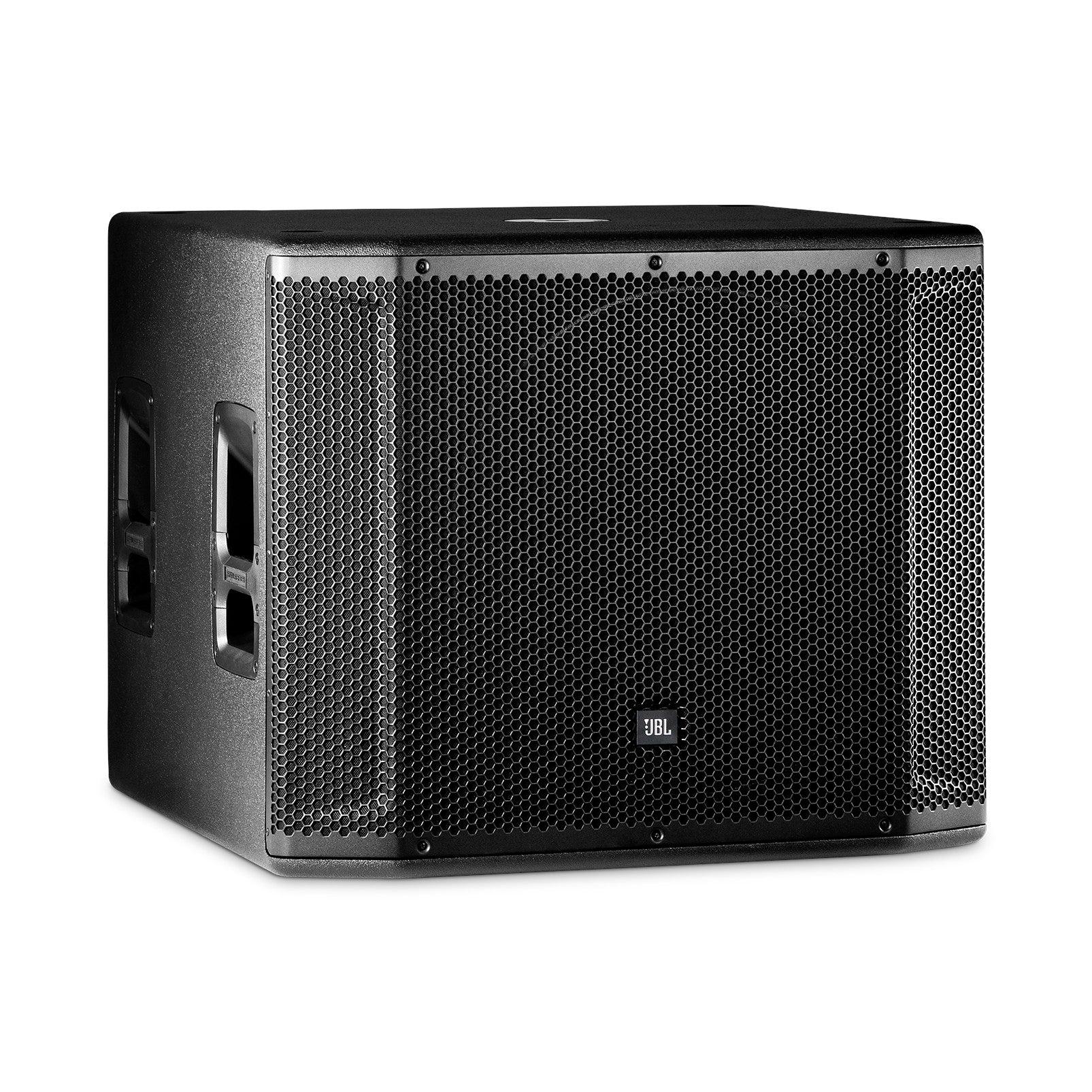

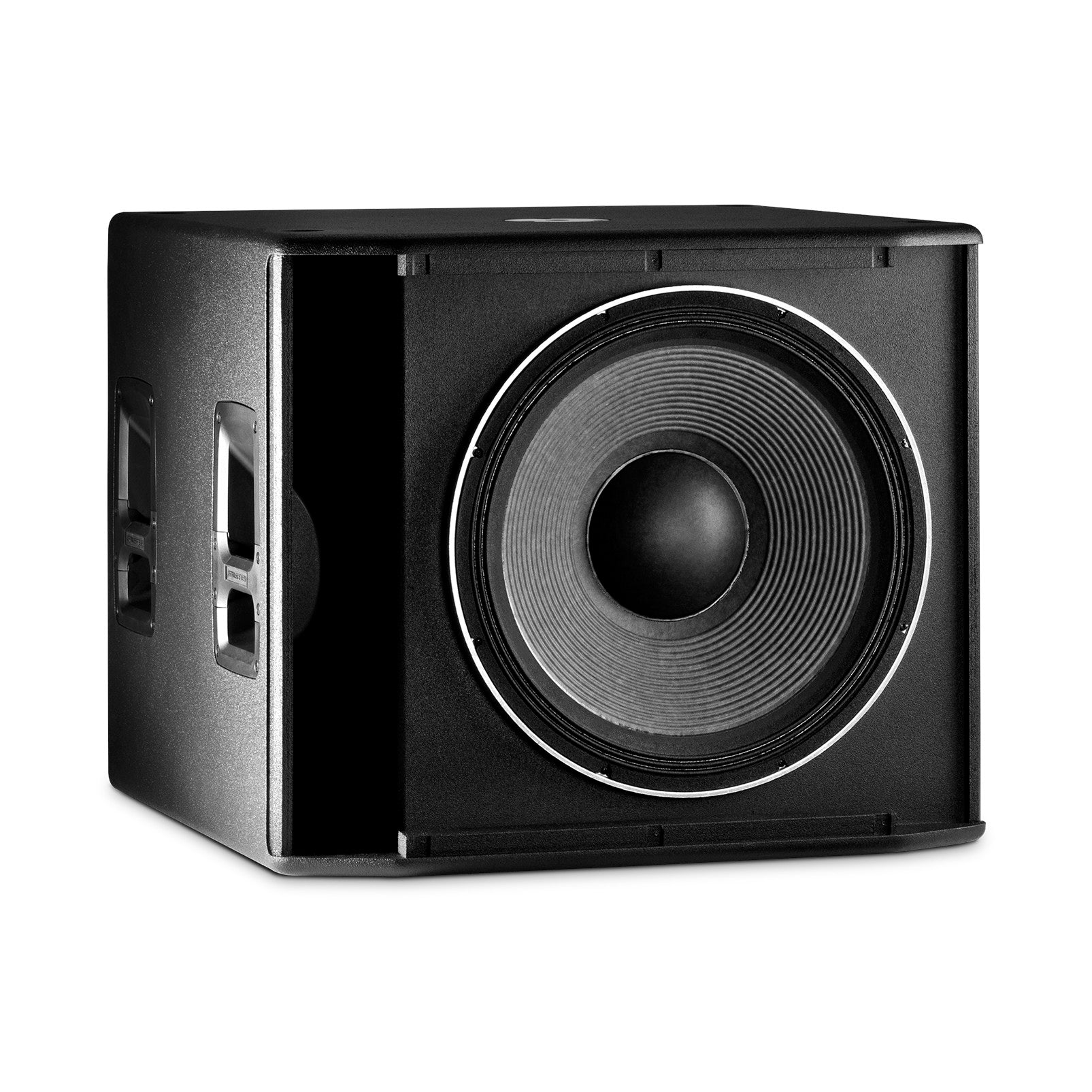

SRX818S is a single 18" subwoofer for concert, touring, or installed use. Featuring a standard M20 pole cup for use with top boxes, indexing feet for stacking in both the standard and cardioid position, and a 136dB max SPL, the SRX818S is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship. Tunings and presets are available for Crown ITech HD and XTI 2 amps as well as dbx VENU360 signal processors.
Specifications:
System Type Passive 18", subwoofer system
Maximum SPL Output 135dB
Frequency Range (-10dB) 28hz - 150hz
Frequency Response (- 3dB) 45hz - 150hz
Sensitivity (1W/1m) 96dB
System Power Rating 2400W Peak , 1200W Program, 600W Continuous
Nominal Impedance 8 Ohms
Connectors NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable)
Operational Modes Passive
LF Driver 2279H
Crossover Frequency 80hz
Enclosure Material 18mm plywood
Suspension/Mounting M20 Threaded Pole Mount
Casters Accepts JBL WK-4S Kit
Handles 4
Grille Powder coated, Obsidian, 14-gauge perforated steel with acoustically transparent black cloth backing
Dimensions
Length 26.89 in (683 mm)
Width 26.92 in (684 mm)
Height 22.62 in (575 mm)
Weight 78.0 lbs (34.4 kg)
Shipping Weight 88 lbs (40.2 kg)
Design
Finish Obsidian DuraFlex finish
Purposeful Design
Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.
Transducer Technology
JBL's patented Differential Drive Technology ferrite drivers incorporate 3" voice coils with lower mass ferrite magnets for reduced weight, increased power handling, exceptionally low distortion and extended low frequency response. JBL's 2432H is the only neodymium 3" voice coil compression drived in this class, delivering very high power levels and smooth, crystal clear sound.
Built to Last
With best in class 18mm wooden enclosures, 14 gauge steel grilles, and JBL's Patented DuraFlex finish, SRX800 speakers are built to last and withstand a lifetime of hard tour use.
