We are an Authorized BSS Audio Dealer - Full Manufacturer Warranty Included - You will receive:
One (1) NEW and Factory Sealed BSS Soundweb London BLU-326 I/O Expander with BLU Link and AVB
If you need more than (1) please change quantity in Checkout!
Shipping Options:
This product needs to be configured before shipping, which usually takes 3 Business Days from the date we receive your order - We will then ship it so that you receive delivery as soon as possible.
Free Shipping via UPS or FedEx 2-Day Air to Physical Street Address in Continental USA – Ships in 1 to 2 Business Days.
Ships Worldwide – Allow 4 business days to ship Internationally.
Overview:
The Soundweb London BLU-325 offers configurable I/O, Ethernet AVB audio, and a high bandwidth, fault tolerant digital audio bus.
The BLU-325 is configurable through HiQnet London Architect. A rich palette of logic objects and a "drag and drop" method of configuration provide a simple and familiar design environment.
This processor features Ethernet AVB audio with primary and secondary ports for fault tolerance, with control through a separate Ethernet port.
The BLU-325 also features a low latency, fault tolerant digital audio bus of 256 channels which uses standard Category 5e cabling giving a distance of 100m between compatible devices. Fiber optic media converters can be used to increase the distance between devices to over 40km.
Four card slots which accommodate analog inputs, analog outputs, digital inputs and digital outputs in banks of four facilitate many different device I/O configurations.
Analog Input Cards provide software configurable gain in 6dB steps up to +48dB per channel and software selectable Phantom Power per channel. Digital Input Cards and Digital Output Cards process AES/EBU and/or S/PDIF audio and offer a variety of clocking and syncing options. (Further information about the I/O cards can be found on dedicated datasheets)

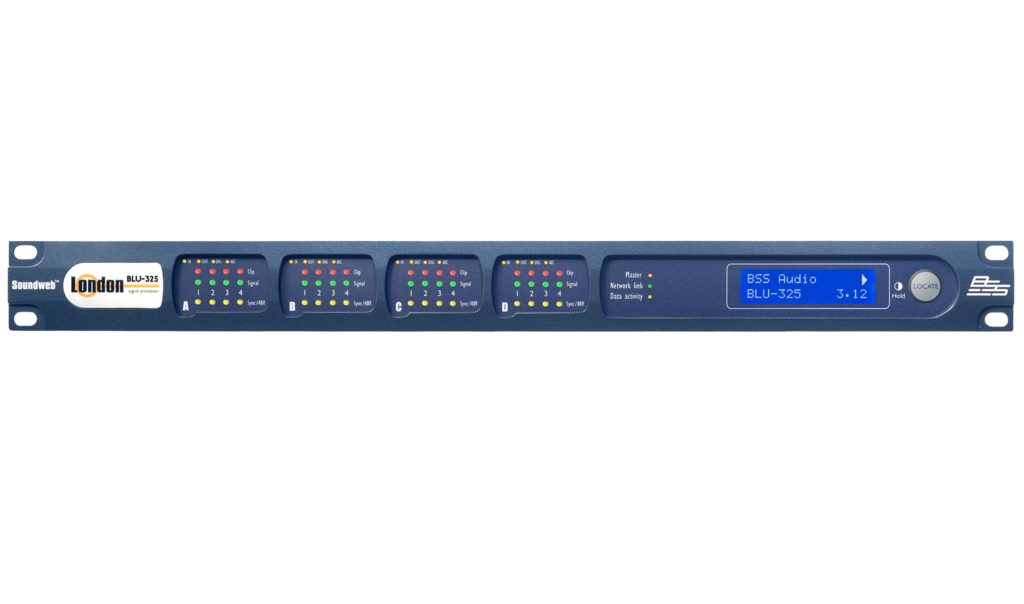

Phantom Power, Sync, Signal Present and Clip information per channel is easily accessible, without the requirement for a PC, from clear front panel LED indication. Device-specific information such as Device Name, Device Type, Firmware Version Number, Time, IP Address and Subnet Mask is available from the front panel display. A bi-directional locate function allows devices to be identified both from and within HiQnet London Architect.

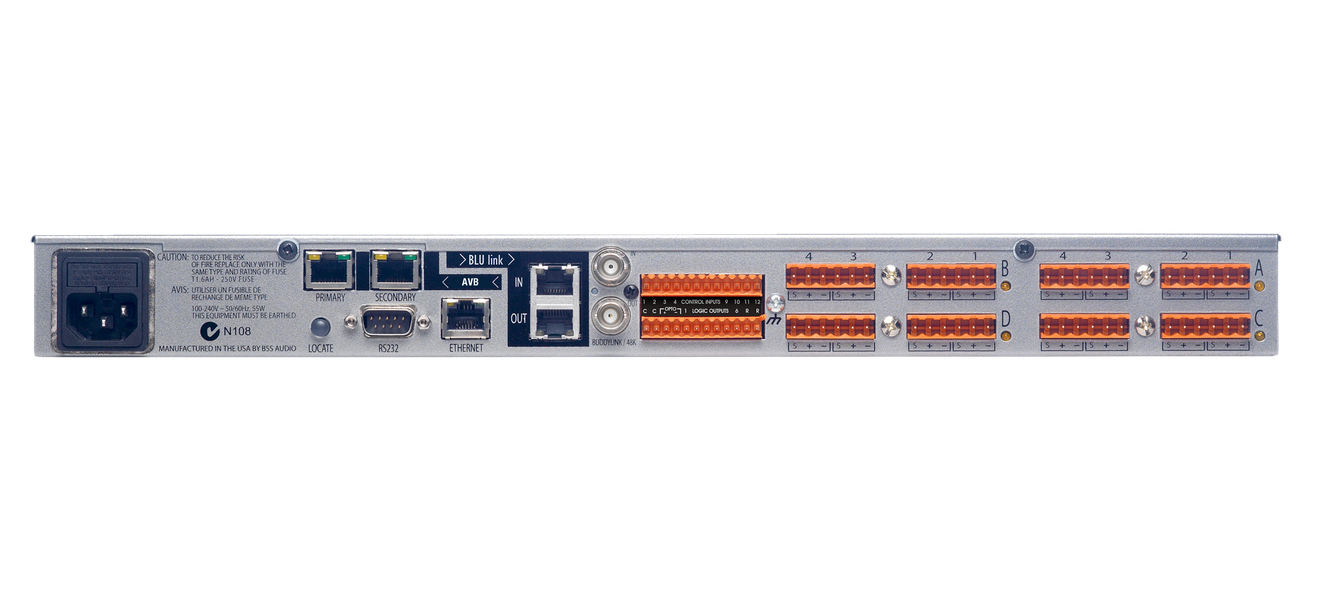

12 Control Inputs and 6 Logic Outputs allow the BLU-325 to be integrated with GPIO compatible devices. The
Soundweb London Interface Kit, comprehensive documentation which details how Soundweb London systems can be integrated with third party control systems, is included within the installation of HiQnet London Architect.
The BLU-325 and the other members of the Soundweb London family provide the building blocks of the perfectly tailored system solution.
Features
Four Input / Output Card Slots
Configurable Inputs / Outputs
Analog Inputs (with Phantom Power per Channel)
Analog Outputs
Digital Inputs (AES/EBU and S/PDIF)
Digital Outputs (AES/EBU and S/PDIF)
AEC Inputs (with Phantom Power per Channel)
Telephone Hybrid Card
Rich Palette of Logic Objects
Ethernet AVB Audio
256 Channel, Low Latency, Fault Tolerant Digital Audio Bus
Clear Front Panel LED Indication
Informative Front Panel Display
Bi-Directional Locate Functionality
12 Control Inputs and 6 Logic Outputs for GPIO Integration
Soundweb London Interface Kit for Third Party Control System Integration (Documentation)
HiQnet Device
Configuration, Control and Monitoring from HiQnet London Architect
