We are an Authorized JBL Dealer - Full Manufacturer Warranty Included - You will receive:
One (1) New and Factory Sealed JBL PRX815XLFW 15 inch Extended Low Frequency Subwoofer System with WiFi - If you need more than (1) please change quantity in checkout.
Click "Contact Seller" to ask us any questions you have.
Shipping Options:
Free Ship via Flat Rate Freight to Physical Street Address in Continental USA - Allow 1 to 2 Business Days to ship.
Free Ship to Alaska & Hawaii - Allow 5 to 7 business days for delivery.
OVERVIEW:

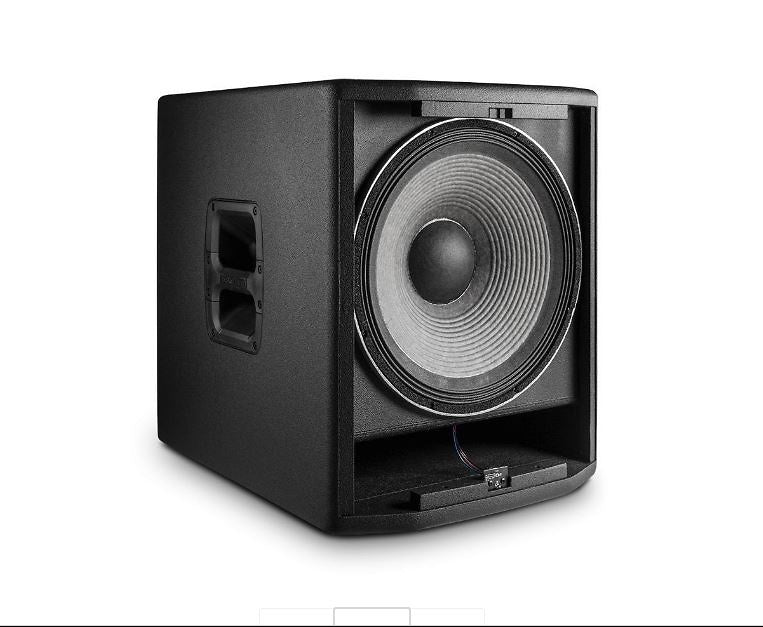

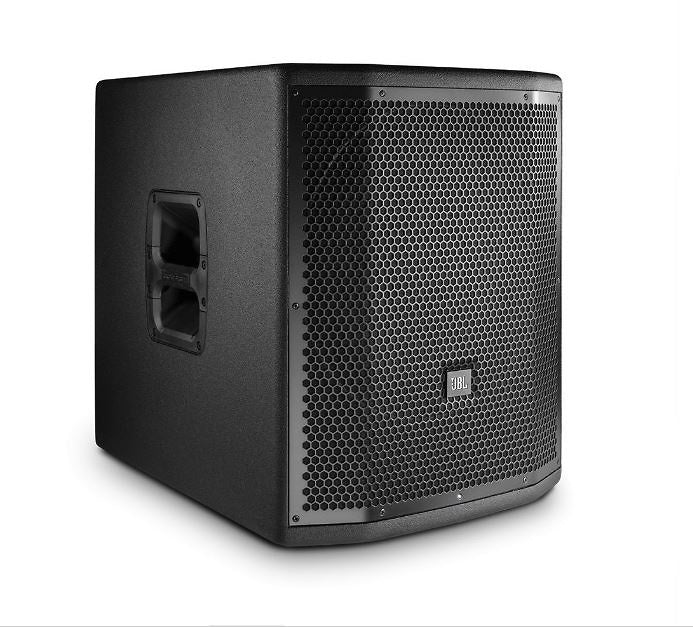

15 inch Self-Powered Extended Low Frequency Subwoofer System with Wi-Fi
The JBL PRX815XLFW is a self-powered extended low-frequency subwoofer system. Featuring a JBL 15-inch woofer powered by a 1500-watt class-D amplifier, PRX815XLFW delivers incredible output in a lightweight and compact form factor.
FEATURES
Built-in Wi-Fi for wireless control of your system from anywhere in the venue
Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
Class-leading 1500-watt amplifier delivers ample power to fill your venue
JBL Differential Drive transducers for higher SPL in a lightweight design
Next-generation JBL neodymium compression drivers
Redesigned Crown input technology, including XLR, 1/4 inch and RCA inputs plus XLR loop-through
Intelligent variable-speed fan activates only when needed to reduce noise
Updated tuning delivers flat frequency response and smooth off-axis behavior
Durable wooden cabinets, tour-proven DuraFlex finish and dent-resistant 16-gauge grilles
Universal power supply for worldwide compatibility
dbx Type IV limiting ensures clear, accurate sound at high volumes
Brutal testing regimen including the famous JBL 100-hour power test ensures reliable performance
APPLICATIONS
The PRX815XLFW extended low frequency subwoofer was designed and engineered to provide sub bass frequencies with accuracy and power. Used as a single sub in a sub/sat system or in multiples as part of a scalable, large format sound reinforcement system, the PRX815XLFW performs with exceptional efficiency and control. The subs are stackable and light-weight ensuring quick set-ups and tear-downs. And due to their rugged construction are perfect for AV rental inventories. With a pole receptacle (that accepts a SS4-BK or SS4-BK24) on the top panel and integrated stereo pass-thru this is the most powerful low-frequency complement to the PRX full-range systems. The addition of a polarity reverse option further enables system optimization.
The PRX815XLFW is a high performance self-powered subwoofer system with remote Wi-Fi control of onboard DSP EQ parameters. The PRX815XLFW is comprised of a powerful 2275H Differential Drive dual voice-coil and magnetic gap, woofer driven by a 1500 Watt Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable cross-over functionality, polarity optimization, protection, dynamic limiting and discrete component optimization.
All PRX800 cabinets are built from a combination of 25 mm (on the top and bottom for added rigidity) and 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX800 Series cabinets are protected by JBLs tour proven DuraFlex finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.

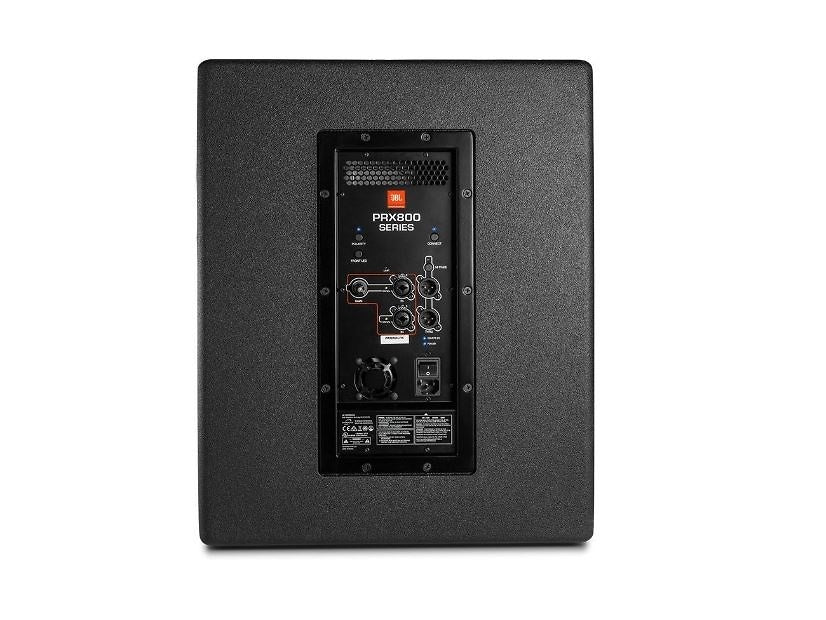

The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level via the level control knob.
SPECIFICATIONS
System Type: Self Powered 15 inch subwoofer
Maximum SPL: 131 dB peak
Frequency Range (-10 dB): 36 Hz - 98 Hz
Frequency Response (±3 dB): 40 Hz 87 Hz
Input Connectors: Two Balanced female XLR/ 1/4 inch combo connectors
Input Impedance: 20K Ohms (balanced)
Signal indicators:
Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting
Signal: Green LED indicates signal present
Power: Blue indicates system has power and ready to pass audio
Dynamic Control (Input): dbx Type IV limiter circuit
Internal Crossover Frequency: 80 Hz DSP
Loop out Crossover Frequency: 120 Hz analog 24 dB filter slope
Design: Highly efficient Class-D amplifier
Power Rating: 1500W
AC Power Input: 100V - 240V ~ 50/60 Hz
LF Driver: 1 x JBL 2275H 15 in woofer
Enclosure: Rectangular, 18 mm & 25 mm, plywood
Transport: 2 x injection molded handles with backing cup
Finish: Obsidian DuraFlex finish
Grille: Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
Dimensions: (H x W x D) 548 mm x 446 mm x 572 mm
(21.6 in x 17.5 in x 22.5 in)
Net Weight: 25.4 kg (56.0 lb)
Gross Weight: 30.3 kg (66.8 lb)
