We are an Authorized Crown Dealer - Full Manufacturer Warranty Included - You will receive:

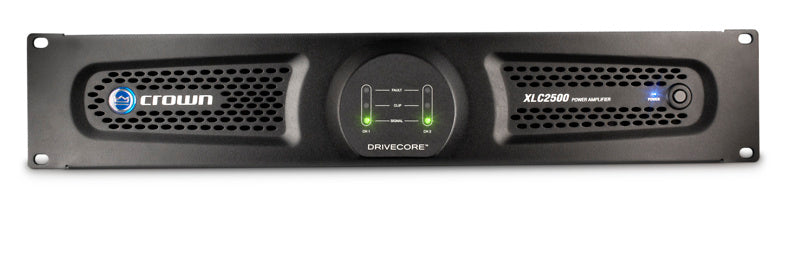

One (1) NEW and Factory Sealed Crown XLC 2500 Two-channel, 500W @ 4 Ohm Power Amplifier - If you need more than (1) please change quantity in Checkout!
Shipping Options:
Free Shipping via UPS or FedEx 2-Day Air to Physical Street Address in Continental USA, Alaska and Hawaii - Allow One Business Day to ship. If for example: You place your order on Monday, It will ship Tuesday and you will have delivery on Thursday.
Overview:
Available in two models, the XLC2500 and XLC2800 incorporate Crown's proprietary DriveCore Technology, which significantly reduces the amplifier's size, while yielding much more energy efficient operation without sacrificing performance. Compact, powerful and cost-effective, the XLC Series provides ease of installation, outstanding sound quality and the unwavering reliability inherent in every Crown product. These amplifiers are powerful, affordable options for both the cinema and install markets.
Some important features for cinema applications:
Two models of 500W (XLC2500) and 800W (XLC2800) per channel at 4-ohms
XLC Amplifiers are compatible with CXM2000 for monitor, fault detection and crossover functions
XLC Amplifiers are compatible with Crown Monitor System DSi-8M for monitor function
Power for 2-ohm, 4-ohm and 8-ohm outputs, supporting stereo and bridge outputs
Support parallel connection of cinema surround speaker
Indicators provide accurate diagnostics: Power, Signal, Clip and Fault
Volume control on rear panel of amplifiers
High performance, light weight
DriveCore based amplifier weighs less than 14lbs (6 kgs)
Some important features for install applications:

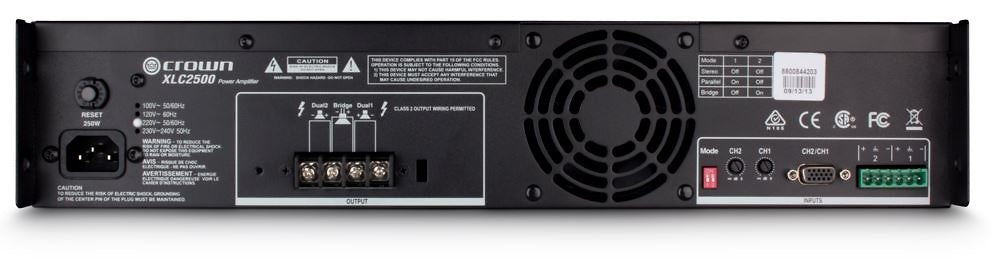

Minimal front panel control; block connectors and controls on back of amplifiers
High performance lightweight DriveCore based amplifier for audiophile quality and extremely high reliability
Configurable input operation for stereo and parallel and bridge modes
Configurable output operation for stereo and bridge modes.
AC Line Voltage and Frequency Configurations Available (+/- 10%) 100VAC 50/60 Hz, 110VAC 60 Hz, 220 and 230~240VAC 50 Hz
Voltage Gain 35
Sensitivity 1.4V (for full rated power at 4 ohms)
Signal to Noise Ratio (ref. rated power, 8 ohms, 1 kHz) > 103 dB
THD <0.5%
Damping Factor (8 ohms, 10 Hz to 400 Hz) >200
Intermodulation Distortion (from full rated output to -30 dB) <0.3%
Frequency Response (at 1W, 20 Hz - 20 kHz) 0 dB
Crosstalk >85 dB (below rated 8 ohms power, at 1 kHz); >55 dB (below rated 8 ohms power, at 20 kHz)
Input Impedance (nominal) 20 kilohms balanced, 10 kilohms unbalanced
Load Impedance 2~8 ohms per channel in Stereo; 4~8 ohms in Bridge
Dimensions 19" x 3.5" x 8" (48.3cm x 8.9cm x 20.6cm)
Weight 8.3 lbs (3.75 kg)
Shipping Weight 10.7 lbs (4.85 kg)
IEC Power Connector 15A
One (1) NEW and Factory Sealed Crown XLC 2500 Two-channel, 500W @ 4 Ohm Power Amplifier - If you need more than (1) please change quantity in Checkout!
Shipping Options:
Free Shipping via UPS or FedEx 2-Day Air to Physical Street Address in Continental USA, Alaska and Hawaii - Allow One Business Day to ship. If for example: You place your order on Monday, It will ship Tuesday and you will have delivery on Thursday.
Overview:
Available in two models, the XLC2500 and XLC2800 incorporate Crown's proprietary DriveCore Technology, which significantly reduces the amplifier's size, while yielding much more energy efficient operation without sacrificing performance. Compact, powerful and cost-effective, the XLC Series provides ease of installation, outstanding sound quality and the unwavering reliability inherent in every Crown product. These amplifiers are powerful, affordable options for both the cinema and install markets.
Some important features for cinema applications:
Two models of 500W (XLC2500) and 800W (XLC2800) per channel at 4-ohms
XLC Amplifiers are compatible with CXM2000 for monitor, fault detection and crossover functions
XLC Amplifiers are compatible with Crown Monitor System DSi-8M for monitor function
Power for 2-ohm, 4-ohm and 8-ohm outputs, supporting stereo and bridge outputs
Support parallel connection of cinema surround speaker
Indicators provide accurate diagnostics: Power, Signal, Clip and Fault
Volume control on rear panel of amplifiers
High performance, light weight
DriveCore based amplifier weighs less than 14lbs (6 kgs)
Some important features for install applications:
Minimal front panel control; block connectors and controls on back of amplifiers
High performance lightweight DriveCore based amplifier for audiophile quality and extremely high reliability
Configurable input operation for stereo and parallel and bridge modes
Configurable output operation for stereo and bridge modes.
AC Line Voltage and Frequency Configurations Available (+/- 10%) 100VAC 50/60 Hz, 110VAC 60 Hz, 220 and 230~240VAC 50 Hz
Voltage Gain 35
Sensitivity 1.4V (for full rated power at 4 ohms)
Signal to Noise Ratio (ref. rated power, 8 ohms, 1 kHz) > 103 dB
THD <0.5%
Damping Factor (8 ohms, 10 Hz to 400 Hz) >200
Intermodulation Distortion (from full rated output to -30 dB) <0.3%
Frequency Response (at 1W, 20 Hz - 20 kHz) 0 dB
Crosstalk >85 dB (below rated 8 ohms power, at 1 kHz); >55 dB (below rated 8 ohms power, at 20 kHz)
Input Impedance (nominal) 20 kilohms balanced, 10 kilohms unbalanced
Load Impedance 2~8 ohms per channel in Stereo; 4~8 ohms in Bridge
Dimensions 19" x 3.5" x 8" (48.3cm x 8.9cm x 20.6cm)
Weight 8.3 lbs (3.75 kg)
Shipping Weight 10.7 lbs (4.85 kg)
IEC Power Connector 15A
