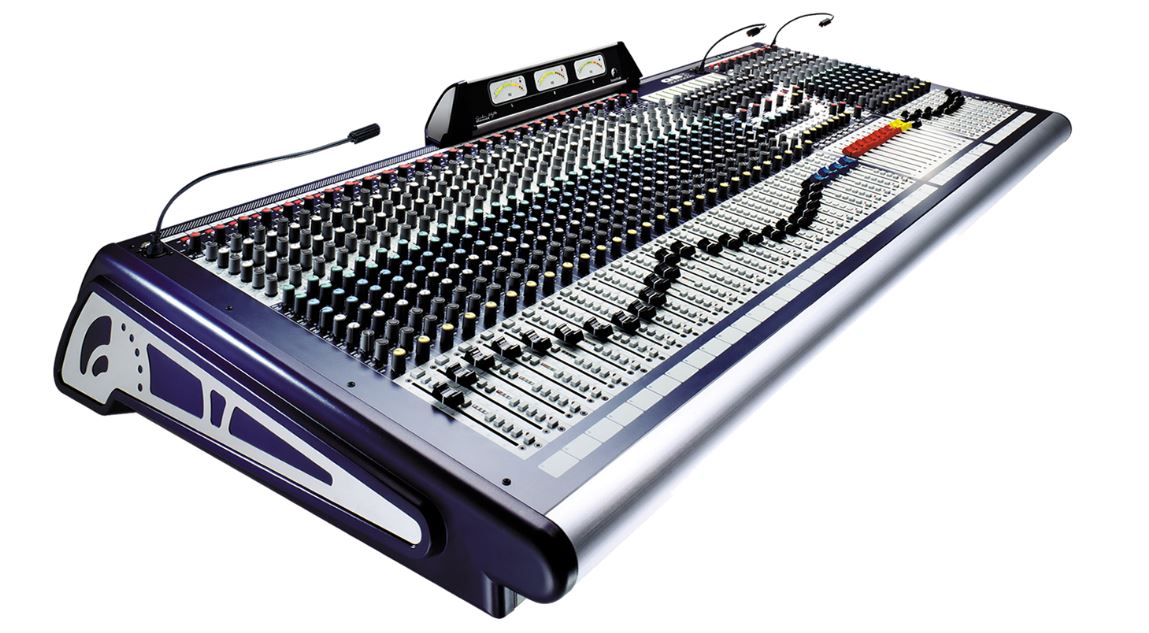

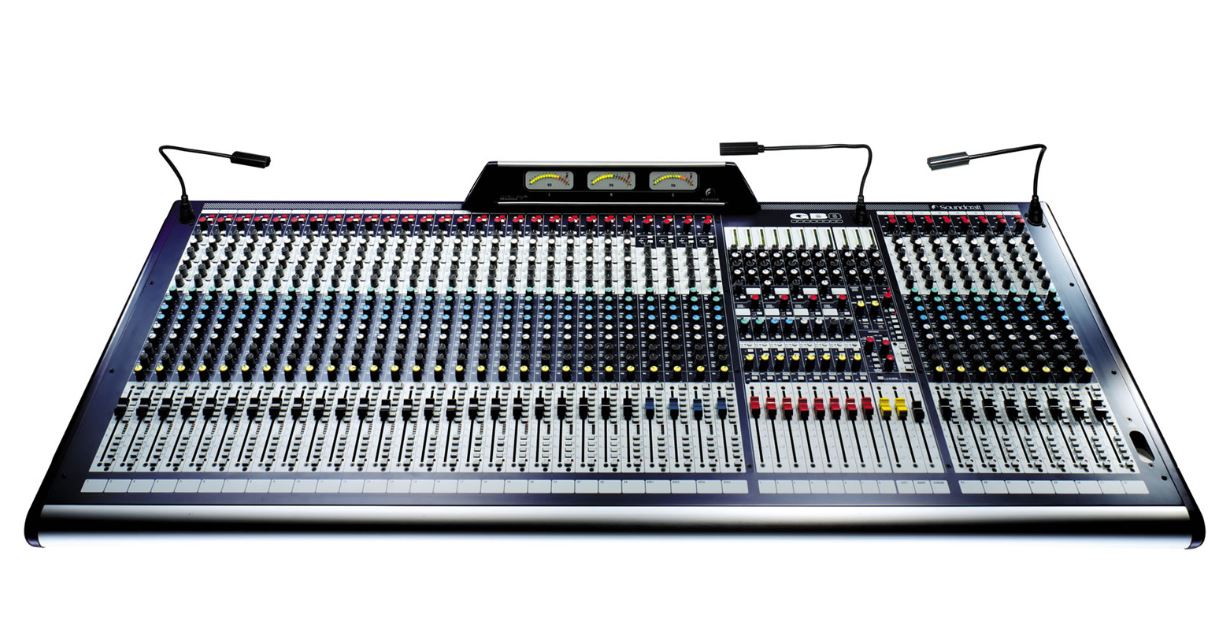

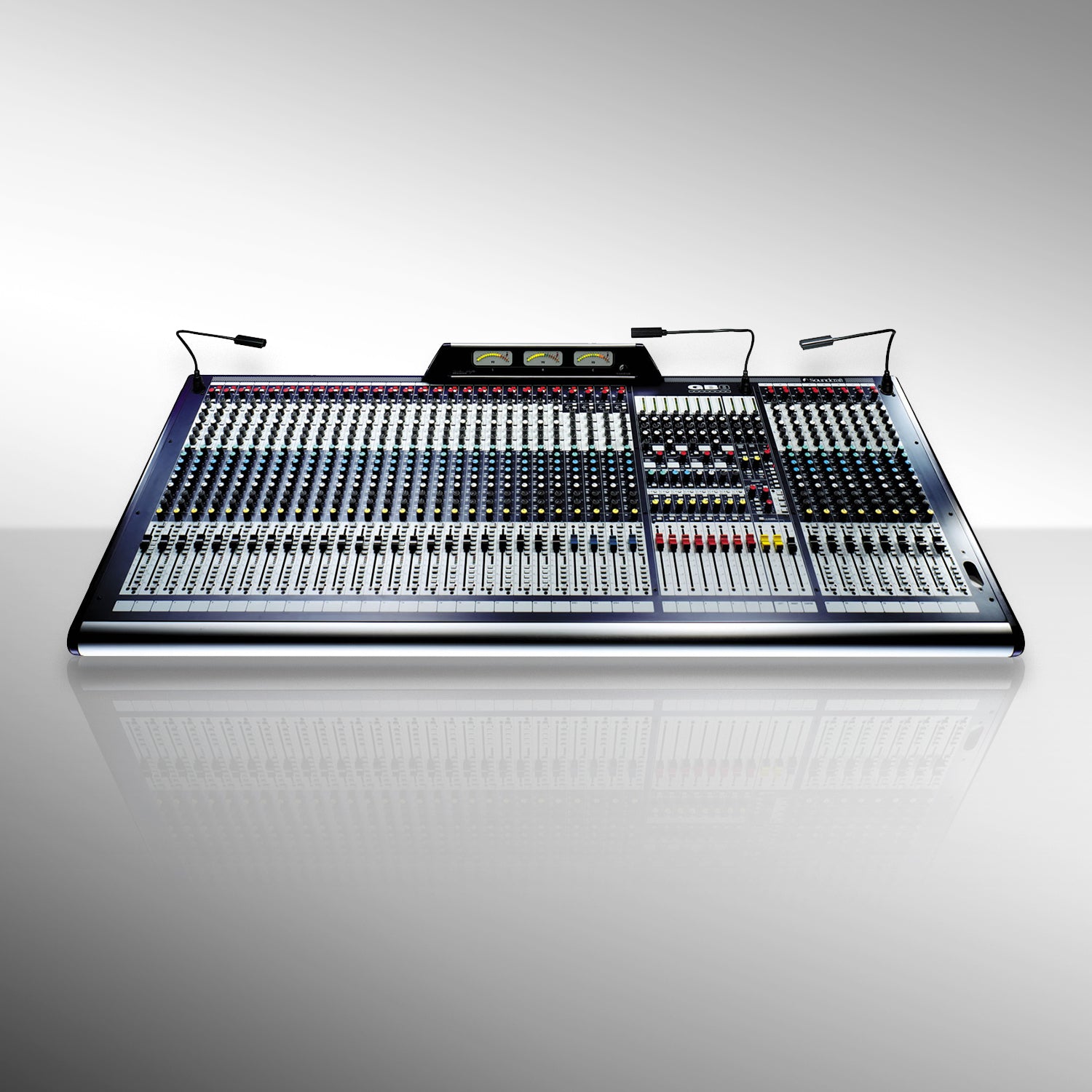

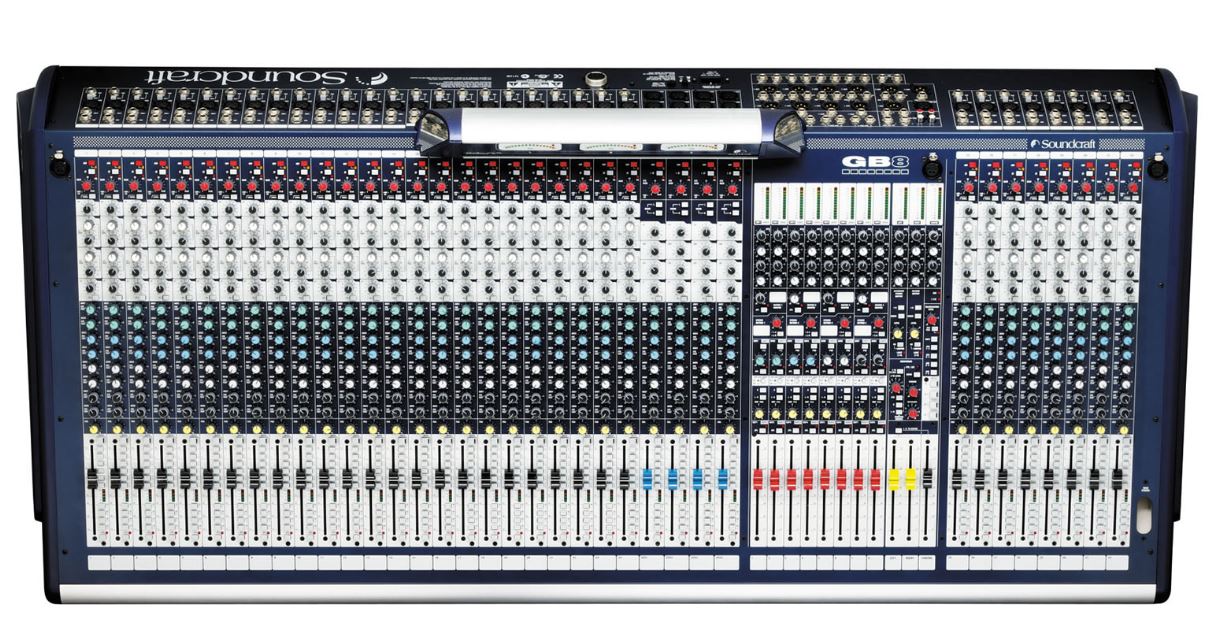

One (1) New & Factory Sealed Soundcraft GB8 48+4/8/2 Professional Mixer - Model# RW5709SM
Shipping Options:
Free Ship via Flat Rate Freight to Physical Street Address in Continental USA - Allow 1-2 Business Days to ship.
Free Ship to Alaska & Hawaii - Allow 5 to 7 business days for delivery.
Overview
Available in frame sizes from 24 to 48 channels, each with four full-function stereo channels and four stereo returns, the GB8 is designed for installations such as churches and performance venues, or for small touring sound systems. The dual-mode topology implemented to such success on the MH3 and MH4 desks allows the GB8 to be used on FOH or monitor duties, with fader control of group or aux outputs. Additional features over the GB4 include a 1kHz oscillator and a meter bridge with three led meters that very closely emulate the ballistics of VU meters.
Four mute groups allow several channels to be muted simultaneously, while another unique facility is the limiter on both the Record and Alternate stereo outputs that makes it easier to create a stereo recording of the mix.
The console also features an output matrix with eleven feeds to four outputs, being fed from the group busses and main L, R and C (mono) outputs.

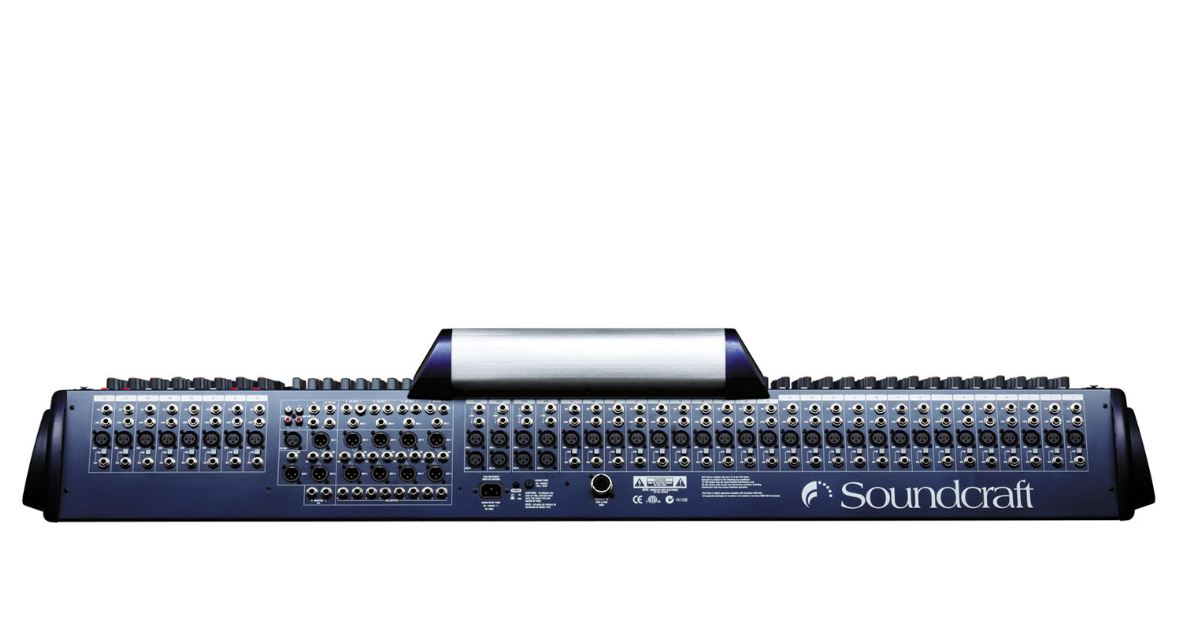

Although largely conventional in layout, the GB8 does have some unique mechanical features. The rugged steel chassis has a sloping rear connector panel so that it is easier to configure from the front of the desk, while the integral power supply has a link option for an external back-up PSU.
Applications
Commercial Audio Pro Audio Pro Recording
Features
Dual purpose console. - 24, 32, 40 and 48 channel frame sizes. - Individually switched 48V phantom power on every mono input module. - 4 Full-feature Stereo channels. - 8 Aux sends (all switchable between pre/post fader operation). - 8 Group sends (SWAP with all 8 Auxes). - 4 Stereo returns. - 4 Mute Groups. - 11x4 Output Matrix. - Limiter on Record Output and Alternative Stereo Output. - GB30 mic pre-amp. - 4-band GB30 EQ. - 1kHz oscillator. - Meter Bridge with accurate VU meters for LEFT, RIGHT and CENTRE Outputs. - Integral power supply, with an external power supply link option. - All metal TRS jacks and Neutrik XLRs. - Direct outputs on all mono input channels.
Details
Model GB8-48 Part Number RW5709SM Noise: Measured RMS, 22Hz to 22kHz Bandwidth Specifications Mic E.I.N. @ unity gain,150 source impedance -128dBu Mic E.I.N. @ unity gain,150 source impedance <-82dBu Mix Output, 40 inputs routed to mix <-83dBu Aux Outputs <-80dBu Matrix Outputs <-89dBu Crosstalk (@1kHz, typical) Specifications Input Channel Mute <-97dB Input Fader Cut-Off <-95dB Pan Isolation <-77dB Mix route isolation <-97dB Group route isolation <-97dB Adjacent channel crosstalk <-99dB Group to Mix <-89dB Aux Send pots offness (typical) <-84dB Matrix Send pots offness (typical) <-84dB Frequency Response Specifications Mic/Line Input to any output, 20Hz - 20kHz <1dB THD + N Specifications Mic sens. -30dBu, +20dBu at all outputs @1kHz <0.006% CMRR Specifications Typical @ 1kHz 80dB Input & Output Max Levels Specifications Mono & Stereo Mic Inputs +15dBu Mono & Stereo Line Inputs +30dBu Stereo Returns & Insert Returns +20dBu Any output +20dBu Nominal Operating Level 0dBu Headphone Power 2x250mW into 200 Input & Output Impedances Specifications Mic Inputs 2k Line Inputs and Stereo Returns 10k Mix, Group, Aux, Matrix & Direct outputs 150 Insert Sends 75 Insert Returns 5k Recommended Headphone Impedance 50 - 600 Dimensions (H x W x D) 159mm (6.26") x 1889mm (74.37") x 656mm (25.83") Weight 99.2 lbs (45.0 kg)
