We are an Authorized Soundcraft Dealer - Full Manufacturer Warranty Included - You will receive:

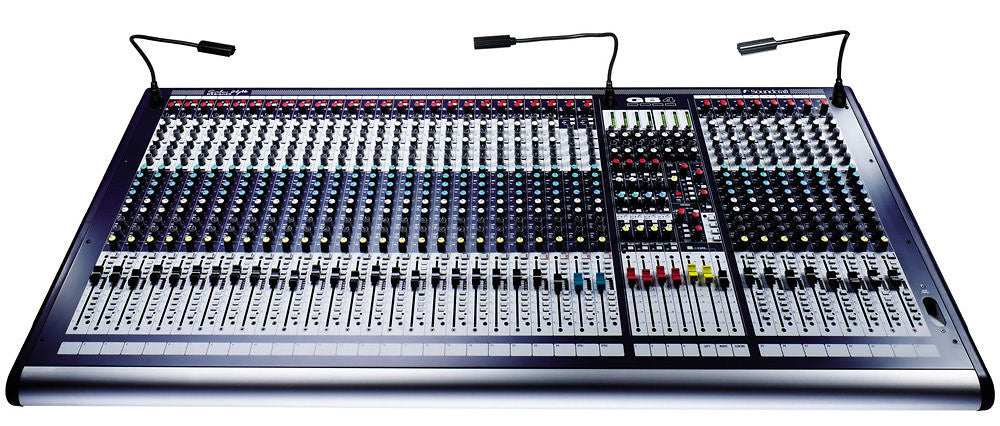

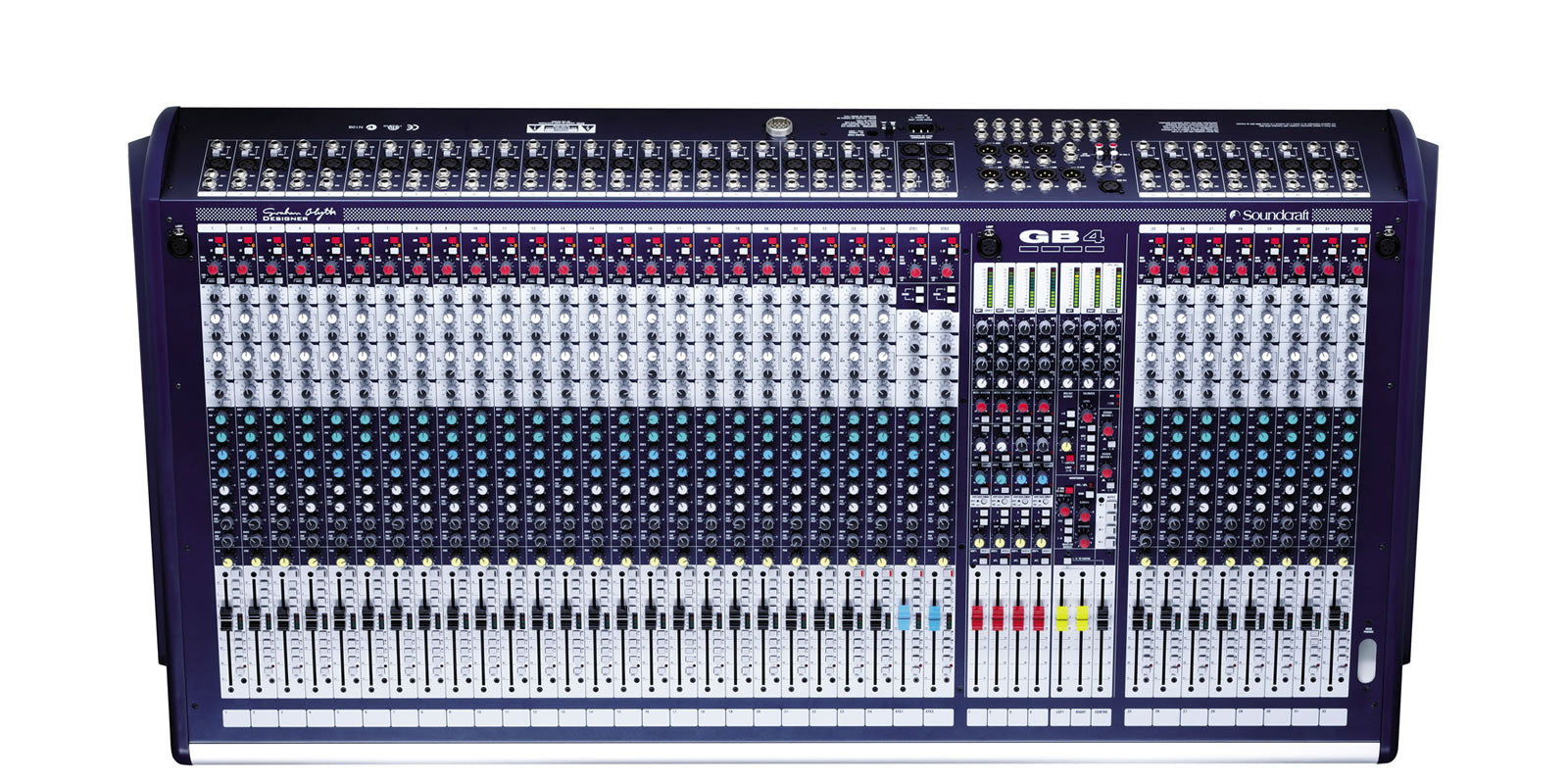

One (1) NEW & Factory Sealed Soundcraft Spirit GB4 - 32 Mono Channel Live Sound Recording Console with 4 Stereo Channels and 4 Group Outputs. Model: RW5692SM
Shipping Options:
The latest in what seems a never-ending stream of new products from Soundcraft this year is the GB4 console, which carries the GB30 Mic preamps and EQ, designed by Graham Blyth for the companys 30th anniversary last year.
The new desks carry the high quality hallmark with which Soundcraft is synonymous, with engineering and design as youd expect from this high-end manufacturer. Careful attention has been given to the mechanical construction, to ensure reliability under strenuous conditions, with all input modules being constructed with individual vertically-mounted pcbs, fitted to the steel chassis front panel with individually-nutted potentiometers.
The GB Series also shares the stylish looks of the MH4, MH3 and LX7ii consoles, continuing a strong family look and feel across the range.
Available in frame sizes from 12 to 40 channels, the GB4 is designed for installations such as churches and performance venues, or for small touring sound systems. The dual-mode topology implemented to such success on the MH3 and MH4 desks allows the GB4 to be used on FOH or monitor duties, with fader control of group or aux outputs.

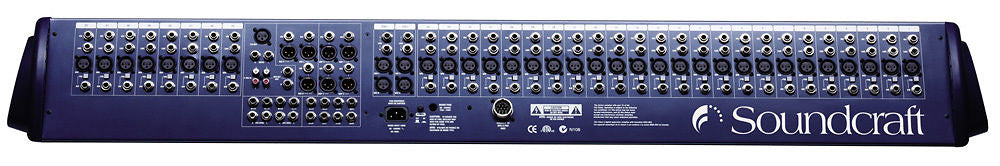

Although largely conventional in layout, the GB4 does have some unique mechanical features. The rugged steel chassis has a sloping rear connector panel so that it is easier to configure from the front of the desk, while the integral power supply has a link option for an external back-up PSU.
Four mute groups allow several channels to be muted simultaneously, while another unique facility is the limiter on a set of dedicated record outputs that makes it easier to create a stereo recording of the mix.
The console also features an output matrix with seven feeds to four outputs, being fed from the group busses and main L, R and C (mono) outputs.
The GB4 console provides ideal live sound mixing for medium-sized venues
including clubs, theaters and houses of worship. It has L/C/R and 8 Aux busses in addition to its 4 groups, 4 mute groups and an output matrix for creating zoned mixes.
Applications: Commercial Audio Pro Audio Pro Recording
Features: - 32-channel frame size. - GB30 mic preamps. - Precision equalization circuitry. - Direct outputs on every channel. - Talkback facility. - 100mm faders. - Switchable 48V phantom powering on every channel. - 18dB/octave high-pass filter. - 4 mute groups. - 12-segment LED metering. - Record output with limiter. - 2 full-feature stereo channels. - 2 stereo returns. - 8 aux sends (4 are pre/post switchable). - 4 sub groups (SWAP with Auxes 1-4). - 7x4 output matrix.
Details Model GB4-32 Part Number RW5692SM Product Type Console Mixer Frequency Response (Mic/Line Input to Any Output, 20Hz - 20kHz) <1dB THD + N (Mic sens. -30dBu, +20dBu at all outputs @1kHz) <0.006%
Noise Specifications Mic E.I.N. @ unity gain,150 source impedance -128dBu Mix Output, 40 inputs routed to mix <-82dBu Group Outputs <-83dBu Aux Outputs <-80dBu Matrix Outputs <-89dBu Crosstalk (@1kHz, typical) Specifications Input Channel Mute <-97dB Input Fader Cut-Off <-95dB Mix Route Isolation <-97dB Group Route Isolation <-97dB Adjacent Channel Crosstalk <-99dB Matrix Send Pots Offness (typical) <-89dB CMMR (Typical @ 1kHz) 80dB Input & Output Max Levels Specifications Mono & Stereo Mic Inputs +15dBu Mono & Stereo Line Inputs +30dBu Stereo Returns & Insert Returns +20dBu Headphone Power 2 x 250mW into 200 Input & Output Impedances Specifications Mic Inputs 2k Line Inputs and Stereo Returns 10k Mix, Group, Aux, Matrix & Direct outputs 150 Power Consumption Specifications AC Mains Supply (internal PSU) 85V-270V AC, 50/60Hz Universal Input Power Consumption Less than 150W Weight 70.5 lbs Dimensions 6.3" x 25.8" x 51.2"
