We are an Authorized JBL Dealer - Full Manufacturer Warranty Included - You will receive with purchase:
One (1) New & Factory Sealed JBL VRX 900 Series Line Array 12" 2-Way Loudspeaker System- Model: VRX932LA-1WH - If you need more than One (1) please change quantity in checkout! Six speakers can be linked together - We offer deep discounts on large quantities!
Shipping:

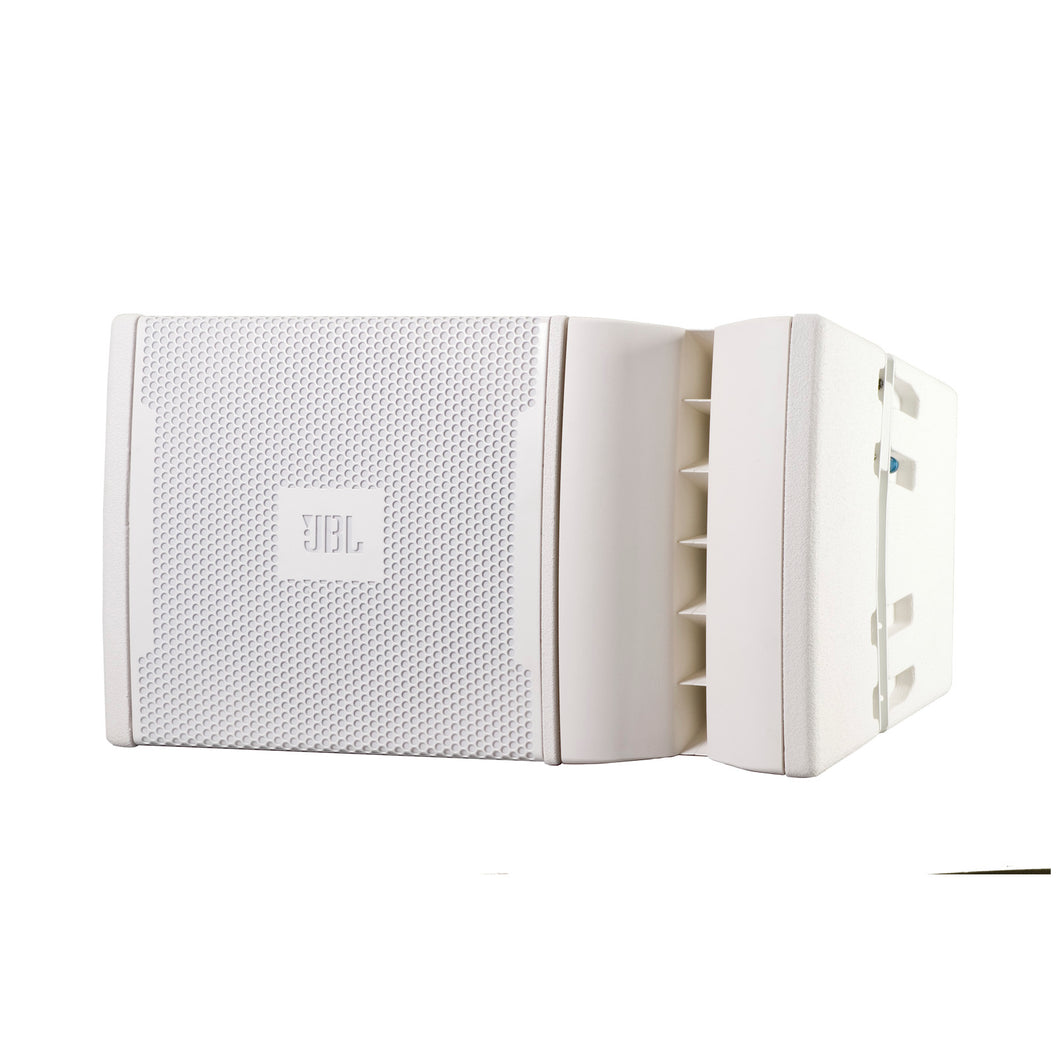

12 in. Two-Way Line Array Loudspeaker System
The VRX932LA-1 is a light-weight (46 lb / 21 kg) compact 12" two-way line array speaker system designed for use in arrays of up to six units.
FEATURES
JBL's exclusive neodymium magnet Differential Drive woofer for high-power capacity and light-weight.
VRX932LA-1 features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
Constant Curvature waveguide for unprecedented array coherence.
Dual angle pole socket for aiming flexibility. One or two speakers may be mounted to a 35 mm pole or
tripod stand.
Integral rigging hardware for simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.
Array Configuration Selector permits "array shading" in passive mode.
SPECIFICATIONS
Power Rating: 800 W / 1600 W / 3200 W
Frequency Range: 57 Hz - 20 kHz (-10 dB)
Dimensions: (H x W x D) 343 mm x 597 mm x 376 mm (13.5 in x 23.5 in x 14.8 in)
Frequency Response: 75 Hz - 20 Hz (+/-3db)
Coverage Pattern: 100 x 15 nominal
Crossover Modes: Bi-amp / passive, externally switchable
Crossover Frequency: 132 dB SPL peak 1.2 kHz
System Maximum SPL: Passive: 130 dB SPL peak , Bi-amp LF: 130 dB SPL peak
System Sensitivity: (1w @ 1m Passive: 95 dB SPL Bi-amp LF: 95 dB SPL Bi-amp HF: 114 dB SPL
LF Driver: 1 x JBL 2262H 305 mm (12 in) Differential Drive woofer with
neodymium magnet, dual voice-coils, and dual magnetic gaps.
HF Driver: 3 x JBL 2408J, 38 mm (1.5 in) voice-coil, neodymium compression driver
Nominal Impedance: Passive: 8 ohm
Bi-amp LF: 8 ohm
Bi-amp HF: 8 ohm
Active Tunings: Tunings available at
Enclosure: 18 mm, 11-ply birch plywood
Suspension / Mounting: Optional VRX932LA-AF line array frame kit
Finish: Black DuraFlex finish
Grille: Power coated, black, 16-guage perforated steel with with acoustically transparent foam
Input Connectors: Neutrik Speakon NL-4 (x2)
Net Weight: 21 kg (46 lb)
