We are an Authorized Martin Dealer - Full Manufacturer Warranty Included - You will receive:

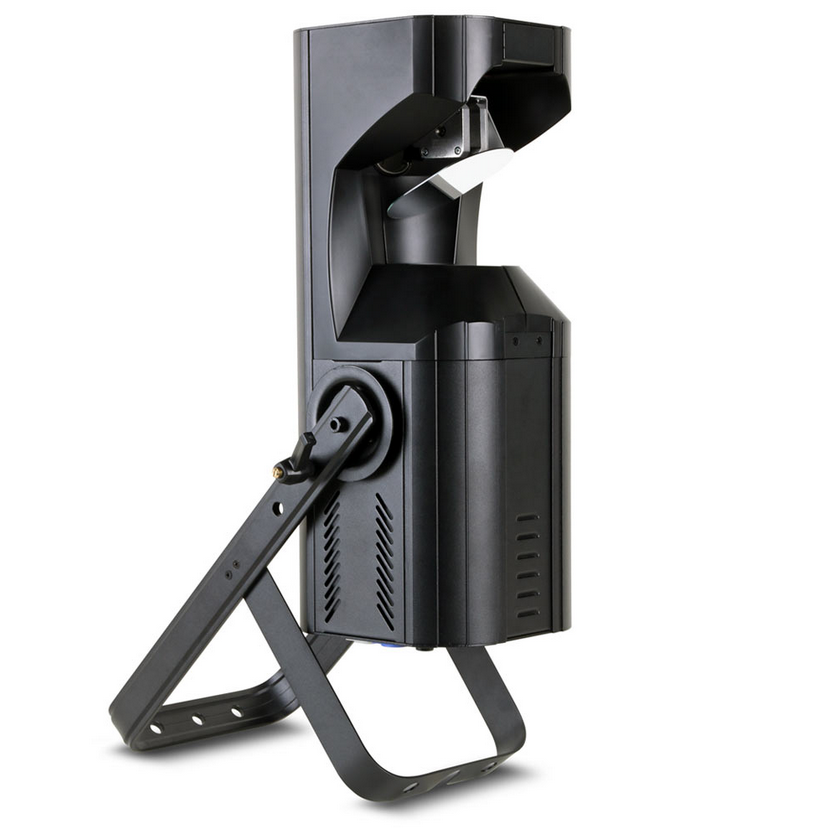

One (1) NEW and Factory Sealed Martin RUSH Scanner 1 LED Compact LED moving mirror profile
If you need more than (1) please change quantity in Checkout!
Shipping Options:
Free Shipping via UPS or FedEx 2-Day Air to Physical Street Address in Continental USA – Ships in 1 to 2 Business Days.
Ships Worldwide – Allow 4 business days to ship Internationally.
Overview:
The RUSH Scanner 1 LED is designed to enable lighting designers to boost the wow factor and energize crowds with high-speed mid-air looks in a variety of entertainment venues and nightclubs.
This fixture delivers high output via sharp optics and is packed with eye-catching effects. With its high-speed pan and tilt capabilities, the RUSH Scanner 1 LED is ideal for creating dramatic atmospheres and boosting energy levels on cruise ships, in dance clubs and other nightlife venues.
Compact size, low weight, rugged construction and long-life LEDs also make the RUSH Scanner 1 LED a favorite for rental companies seeking to produce once-in-a-lifetime memorable events through powerful, dynamic lighting effects.
Powerful 90 W white LED engine
Breathtakingly fast pan and tilt
Rich, dynamic feature set including two color wheels, two gobo wheels and rotating prism
Features:
High-power, long-life 90 W white LED engine
Effects include two gobo wheels. two color wheels and a 3-facet prism
Sharp projections with motorized focus
DMX control and standalone operation
Auto trig and music trig standalone modes
Compact size and rugged construction
Physical
Length: 588 mm (23.1 in.)
Width: 303 mm (11.9 in.)
Height: 193 mm (7.6 in.)
Weight: 9.6 kg (21.1 lbs.)
Dynamic Effects Electronic dimming: 0 - 100%, four dimming curve options
Color wheel 1: 8 colors plus open, rotation with variable direction and speed
Color wheel 2: 8 colors (incl. 1 x UV, 2 x CTC) plus open, rotation with variable direction and speed
Rotating gobo wheel: 6 rotating/indexing gobos plus open
Fixed gobo wheel: 7 gobos plus open
Electronic shutter effect: Strobe, pulse effects, instant open and blackout
Prism: Indexing and rotation with variable direction and speed
Focus: Motorized
Pan: 170°, coarse & fine control
Tilt: 75°, coarse & fine control
Control and Programming
Control options: DMX, standalone, synchronized master/slave
Setting and addressing:
Control panel with backlit LCD display
DMX channels: 16
Standalone trigger options: Sound activation (music trig), auto trig
Standalone sequences: 9 pre-programmed shows
Standalone memory: 20 scenes
Music trig sensitivity: Adjustable
DMX compliance: USITT DMX512/1990
Optics
Light source: 90 W LED engine
Minimum LED lifetime: 30,000 hours (to >70% luminous output)*
Rotating gobo size : 24 mm (0.94 in.)
Rotating gobo image size : 20 mm (0.79 in.)
*Figure obtained under manufacturer's test conditions.
Construction
Housing: High-impact flame-retardant thermoplastic
Color: Black
Protection rating: IP20 Installation
Mounting points: Adjustable bracket, surface or truss mount
Location: Indoor use only, must be fastened to surface or structure
Orientation: Any Connections AC power in, thru: Neutrik PowerCon DMX data in/out: 3-pin and 5-pin locking XLR
Electrical
AC power: 100-240 V nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Power Consumption: 168 W Fuse: T 6.3 A Typical half-cycle RMS inrush current: 10 A Typical
Power and Current 100 V, 60 Hz: 1.7 A, 170 W, PF 0.997 120 V, 60 Hz: 1.4 A, 165 W, PF 0.994 230 V, 50 Hz: 0.7 A, 162 W, PF 0.937 Figures obtained at nominal voltage. Figures are typical, not maximum, allow for +/- 10% variation.
Thermal
Cooling: Forced air
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 0° C (32° F)
Total heat dissipation (calculated, +/- 10%): 570 BTU/hr. (at full intensity)
Approvals
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 EU EMC: EN 55015, EN 55103-1, EN 55103-2, EN 61000-3-2, EN 61000-3-3, EN 61547 US safety: UL 1573 US EMC: FCC Part 15 Class B Canadian safety: CSA C22.2 No. 166 Canadian EMC: ICES-003 Class A Australia/NZ: RCM
Included Items
Power cable, 6 A, 18 AWG, 0.75 mm2, UL- listed, H05VV-F, 1.5 m, without mains plug
Mounting bracket
